Exterior Door for Walls and Ceilings
Model ED Series
Submittal
Submittal ED Series Access Door (English pdf)
Model ED Series
Exterior Door for Walls and Ceilings

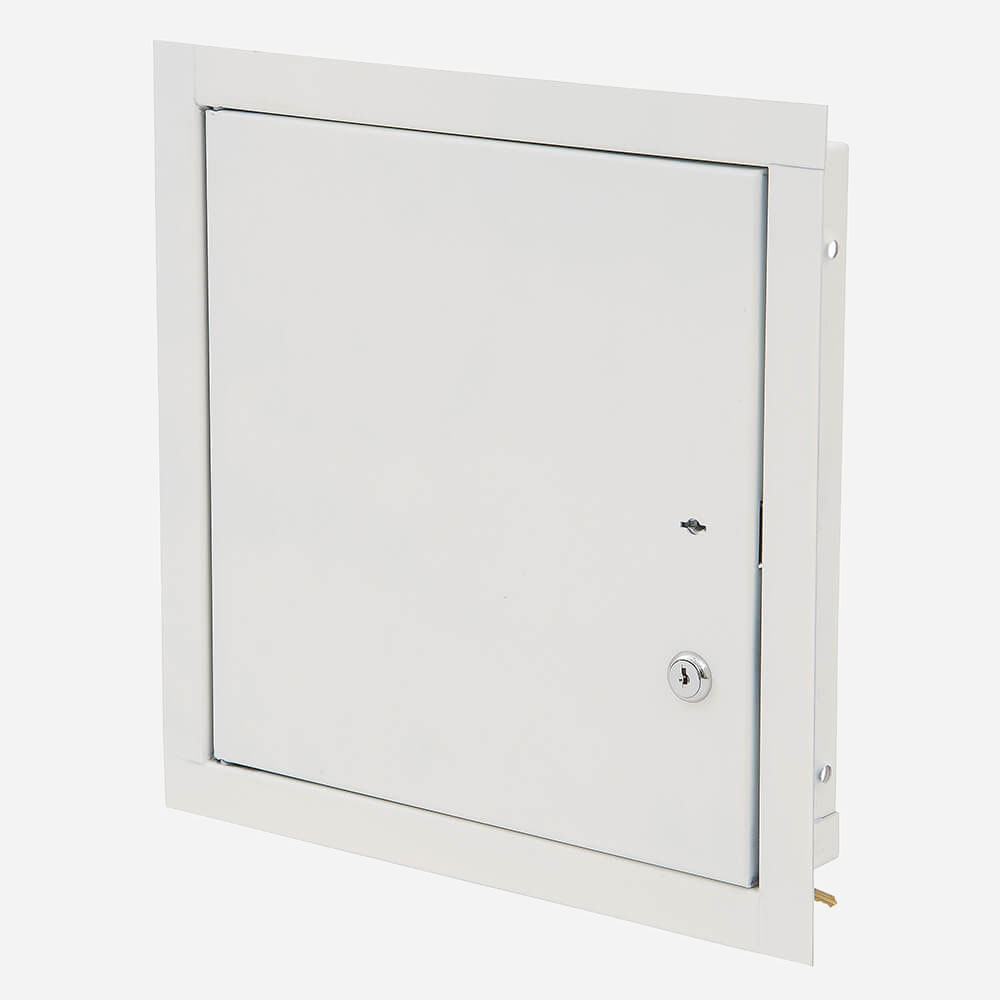

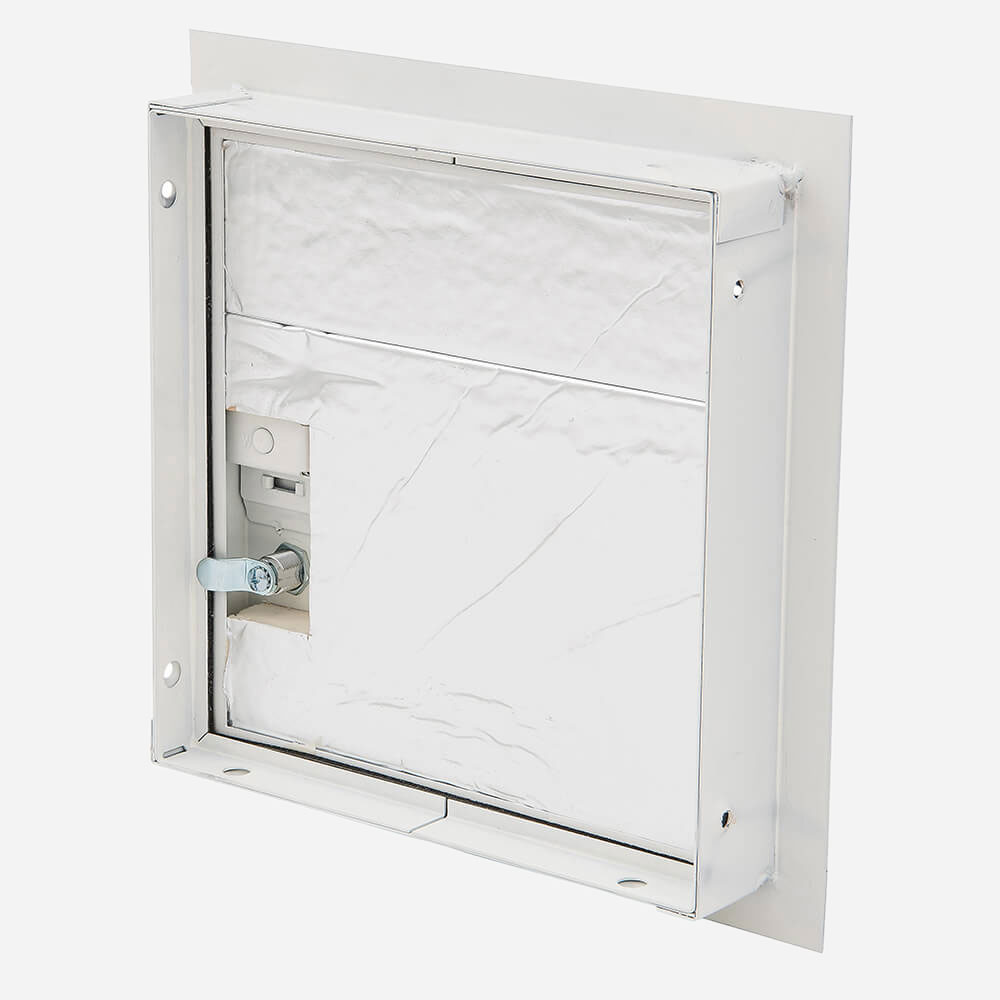

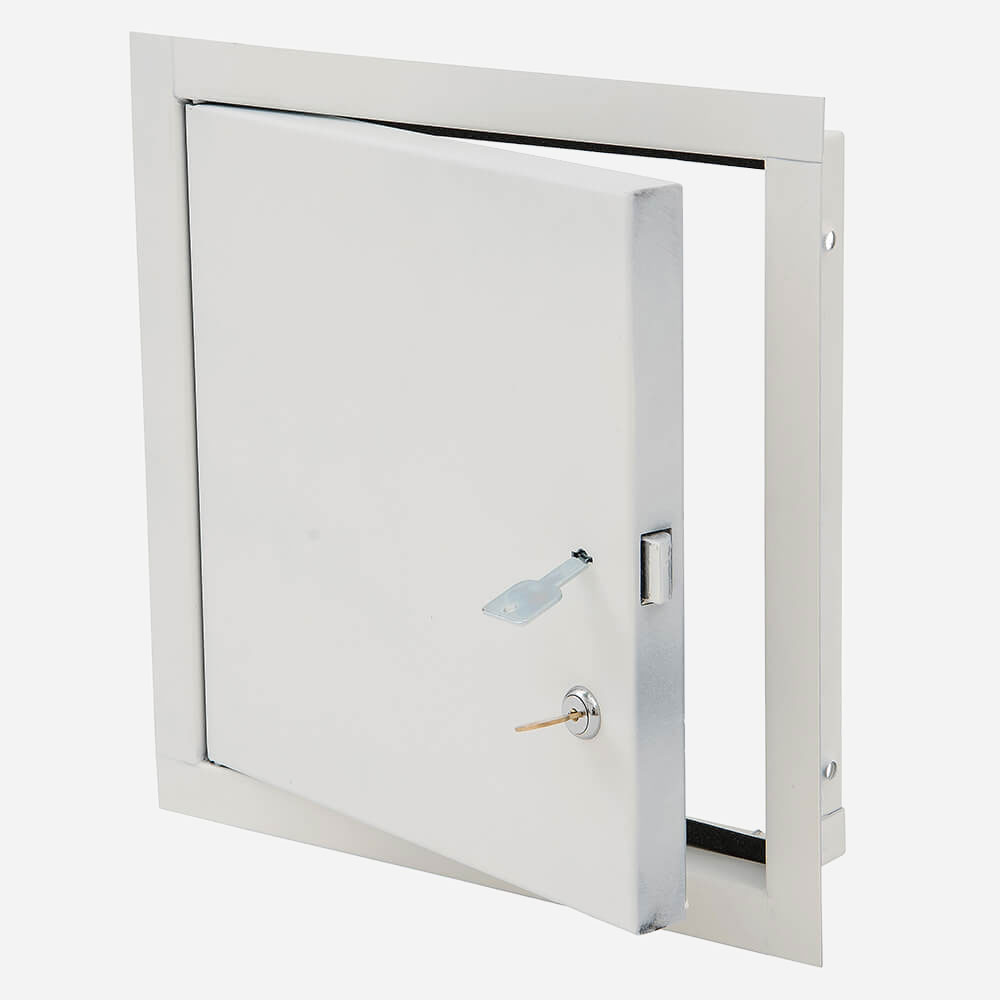

Access door frame shall be fabricated from 16 gauge galvannealed steel with a prime coat finish and provided with bolt holes. Access door panel shall be fabricated from 16 gauge galvannealed steel with a prime coat finish. The door shall be filled with 1 inch (25.4 mm) thick, rigid foam insulation. The access door shall have a concealed hinge with a dual-purpose latch. Exterior latching shall be flush with the door and operated by either a knurled knob or flush key. Finish shall be prime coat suitable for painting.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Exterior Door for Walls and Ceilings | 0 | 529 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 21 MB |
Specifications
| Brand | Elmdor |
| Mount | Wall Mount, Off-Floor, Flush Mount, Ceiling |
| Material | Galvanized Steel |
| Additional Benefits | Contains Recycled Material, Recyclable |
