Model FR Series
Fire-Rated Wall Access Door

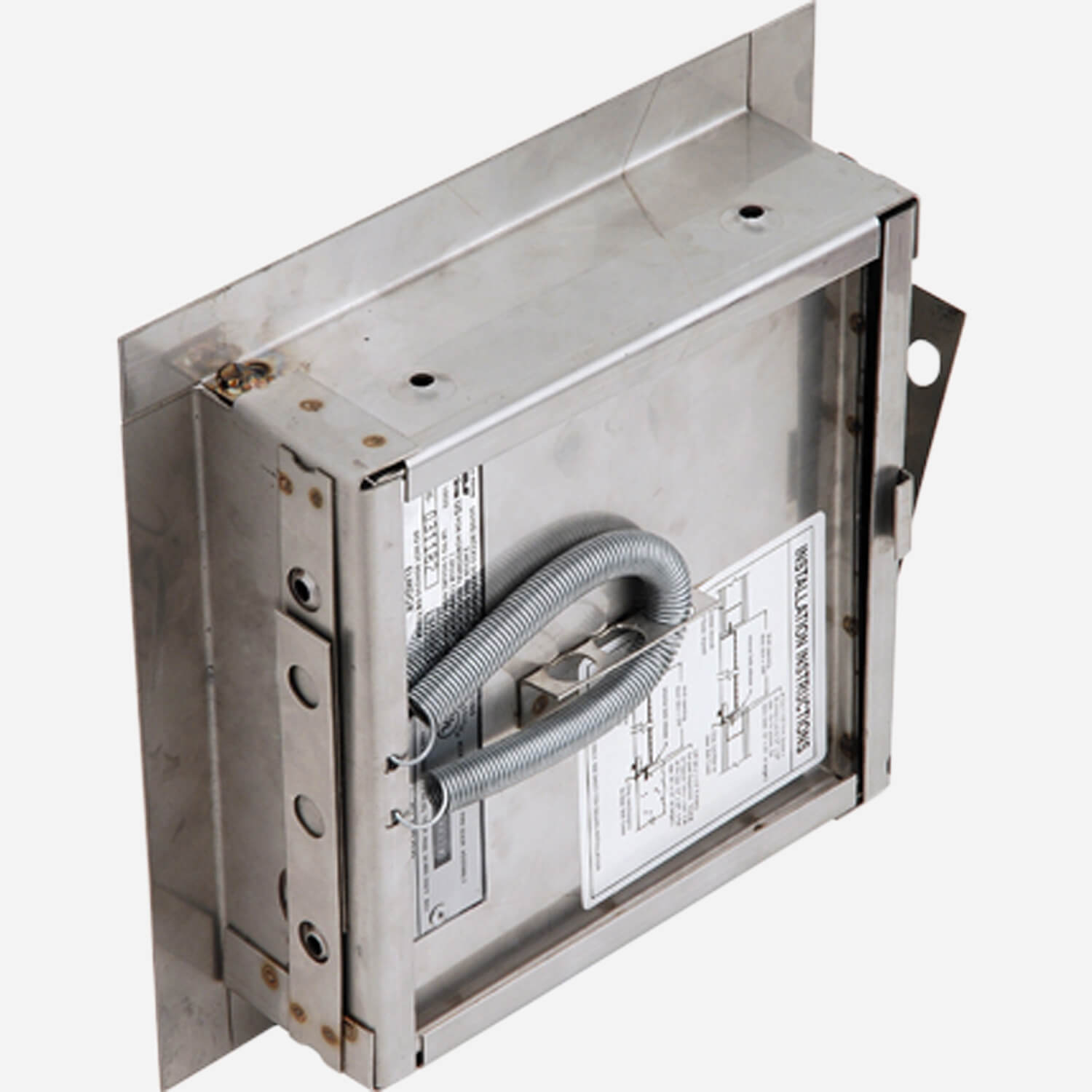

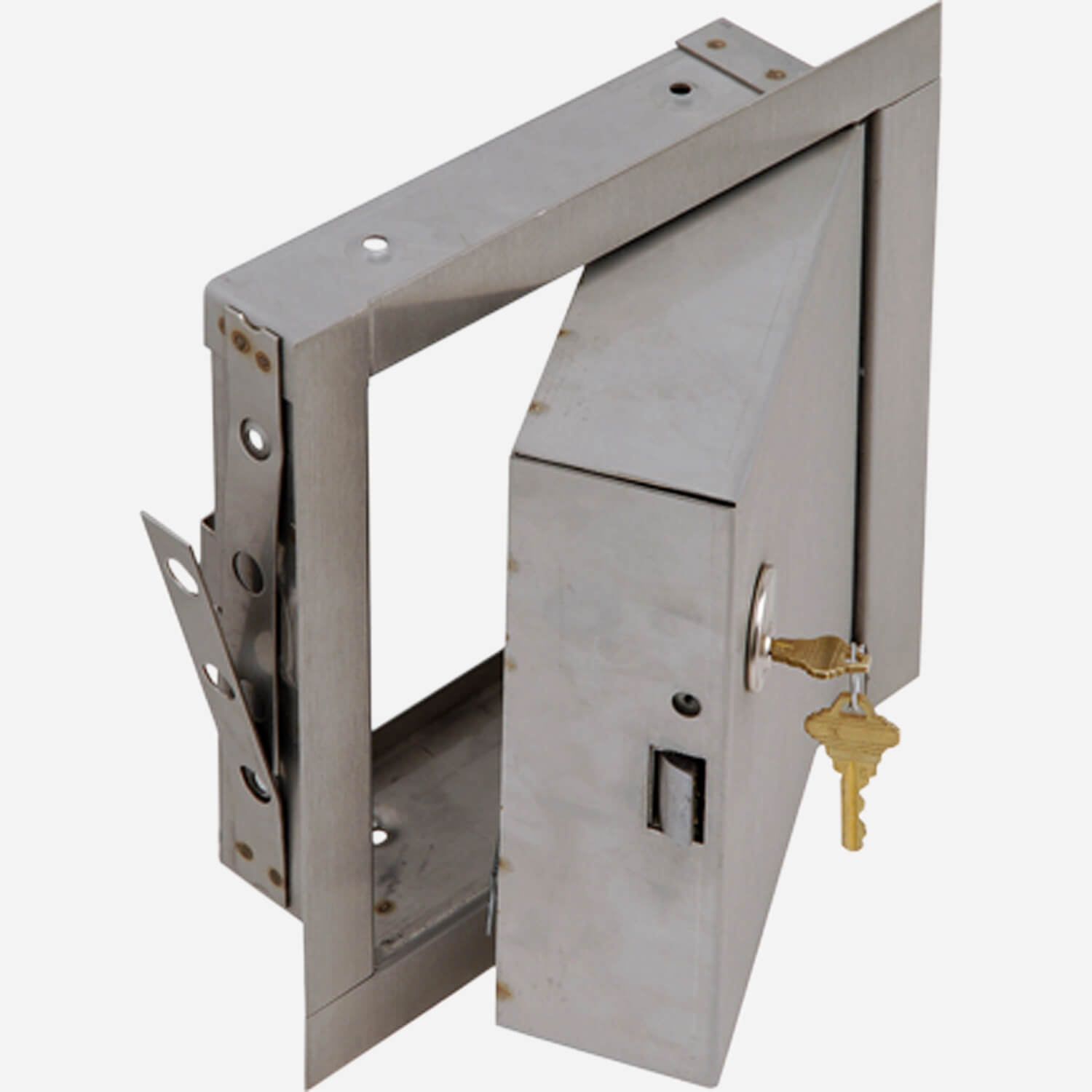

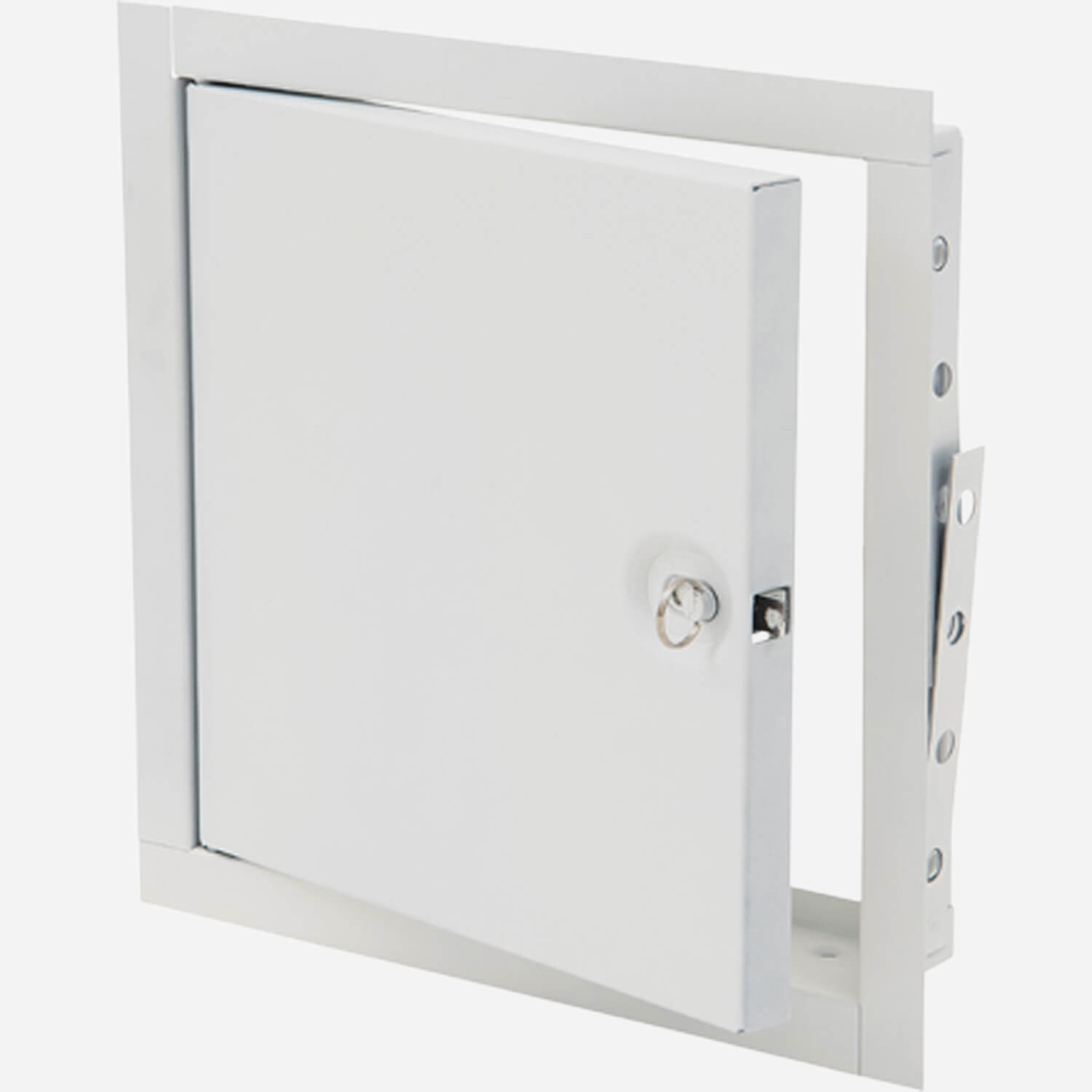

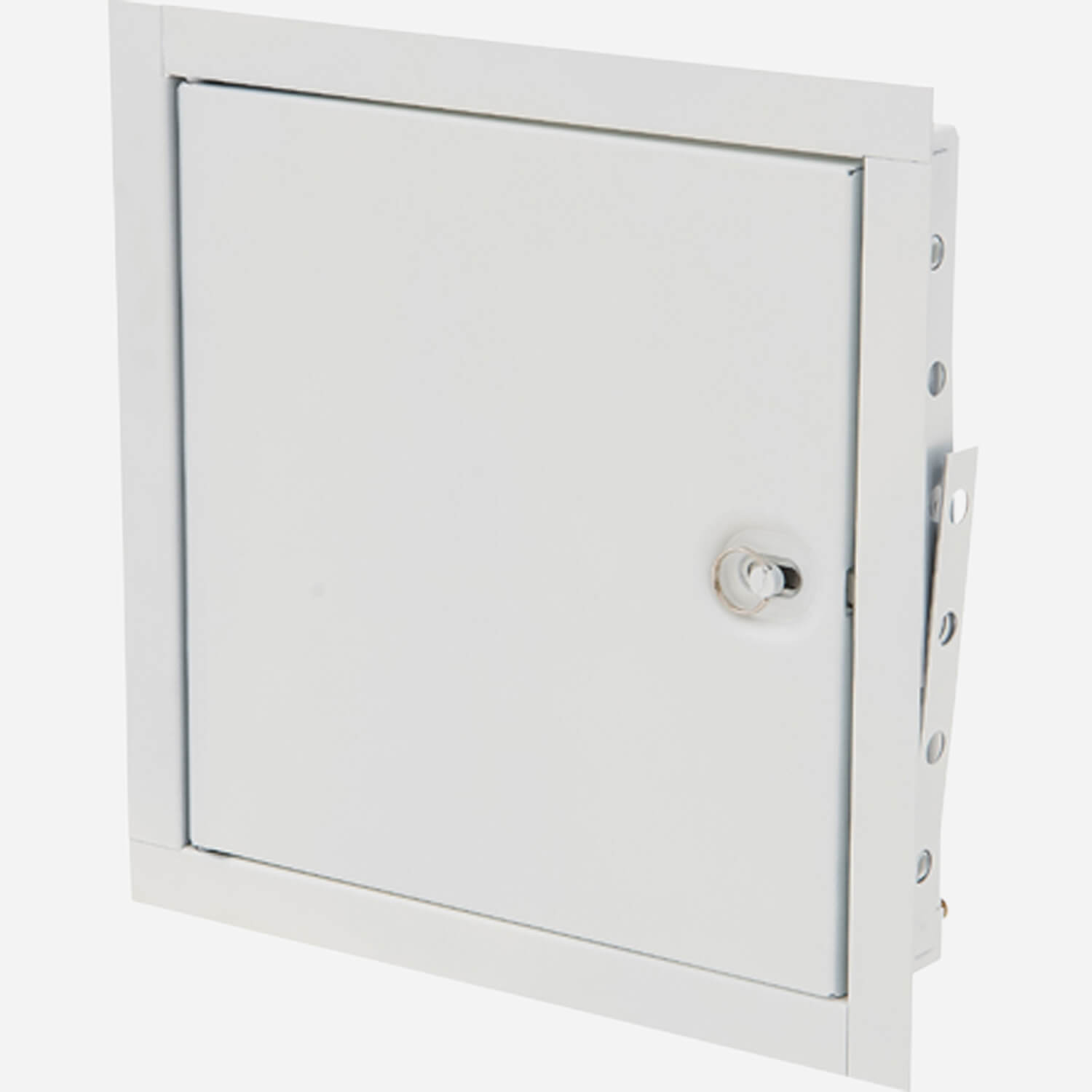

Access door and frame shall be fabricated from 16 gauge, galvannealed steel with a prime coat finish suitable for painting. Hinge shall be concealed type. Door shall have a heavy-duty spring to provide positive latching when closed, and an interior latch release slide enabling door to be opened from the inside. The exterior latch shall be recessed and operated using a ring attached to the sliding bolt.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Rated Wall Access Doors | 0 | 556 KB | ||
| | Fire-Rated Wall Access Door | 0 | 615 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 21 MB |
Specifications
| Brand | Elmdor |
| Mount | Wall Mount |
| Material | Galvannealed Steel |
| Compliance | ANSI-UL 10B Standard, UL Classified 1.5 hours B-Label, Meets ANSI-UL 10B standard |
| Additional Benefits | Contains Recycled Material, Recyclable |
