Flush Valve Panel and Frame

Name: Flush Valve Panel and Frame
Brand: Morris Industries Mexico
SKU: S009 or S010

Request Quote

Model S009 or S010

Submittal

Submittal S009 and S010 Access Door (English pdf)

Model S009 or S010

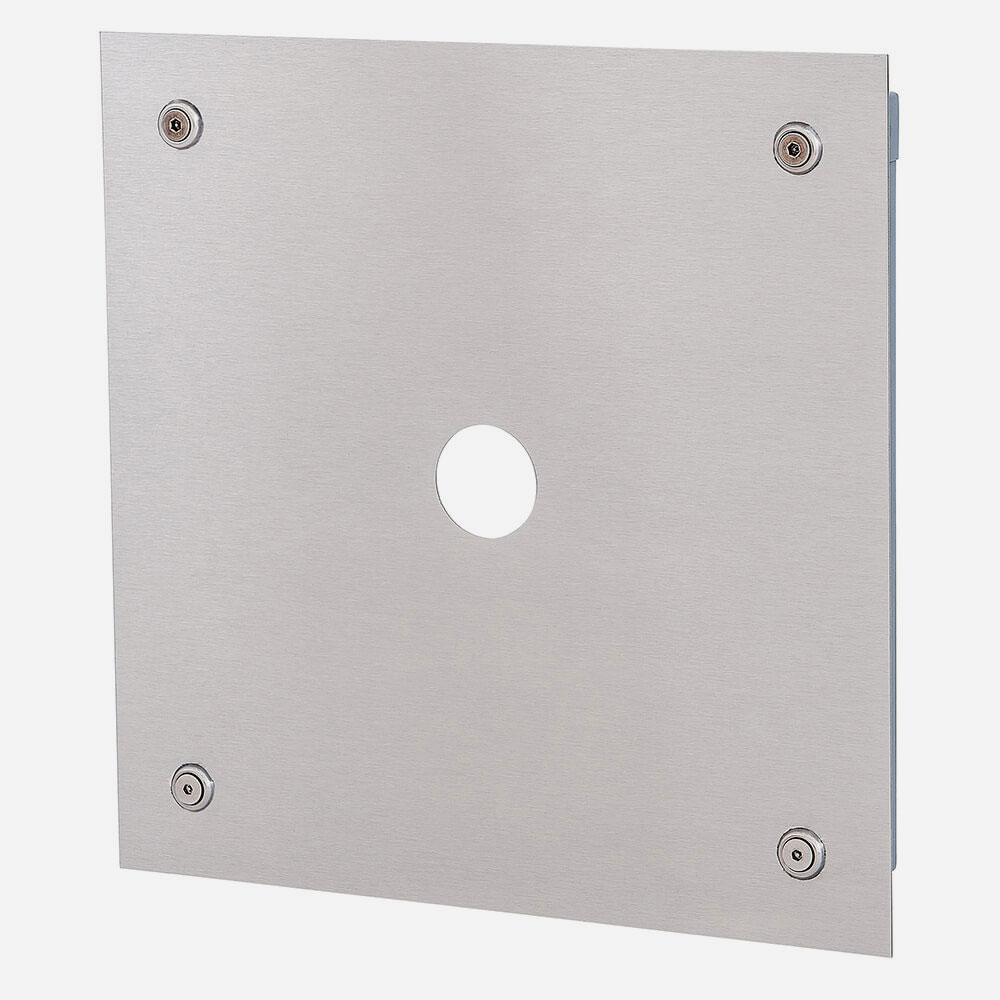

Flush Valve Panel and Frame

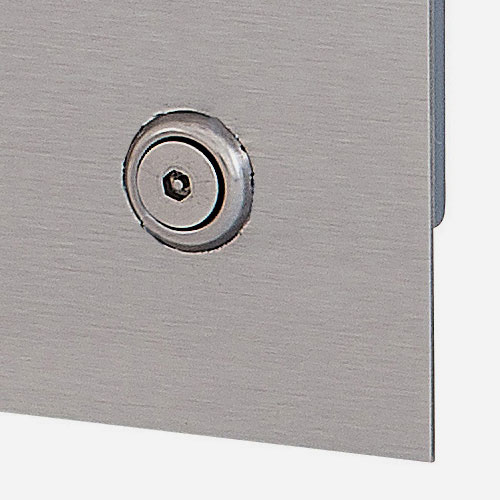

Wall panel shall be fabricated from 14 gauge, type 304, stainless steel with a satin finish on the exposed surface. The frame shall be 16 gauge jet coat steel with a prime coat and shall have mounting holes. The panel shall be secured to the frame with four tamper-resistant, stainless steel screws.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

	Resource Type	Title	Description	File Size	Action
	Submittals	Submittal S009 and S010 Access Door (English pdf)	Flush Valve Panel and Frame [S009 12" x 12" Frame for urinal flush valve Panel Size: 13-1/2" x 13-1/2"; S010 13" x 17" Frame for toilet flush valve Panel Size: 15" (w) x 19" (h)]	568 KB
	Literature/Brochures	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Brand	Elmdor
Mount	Wall Mount, Off-Floor, Flush Mount
Material	Galvanized Steel

Model	Description

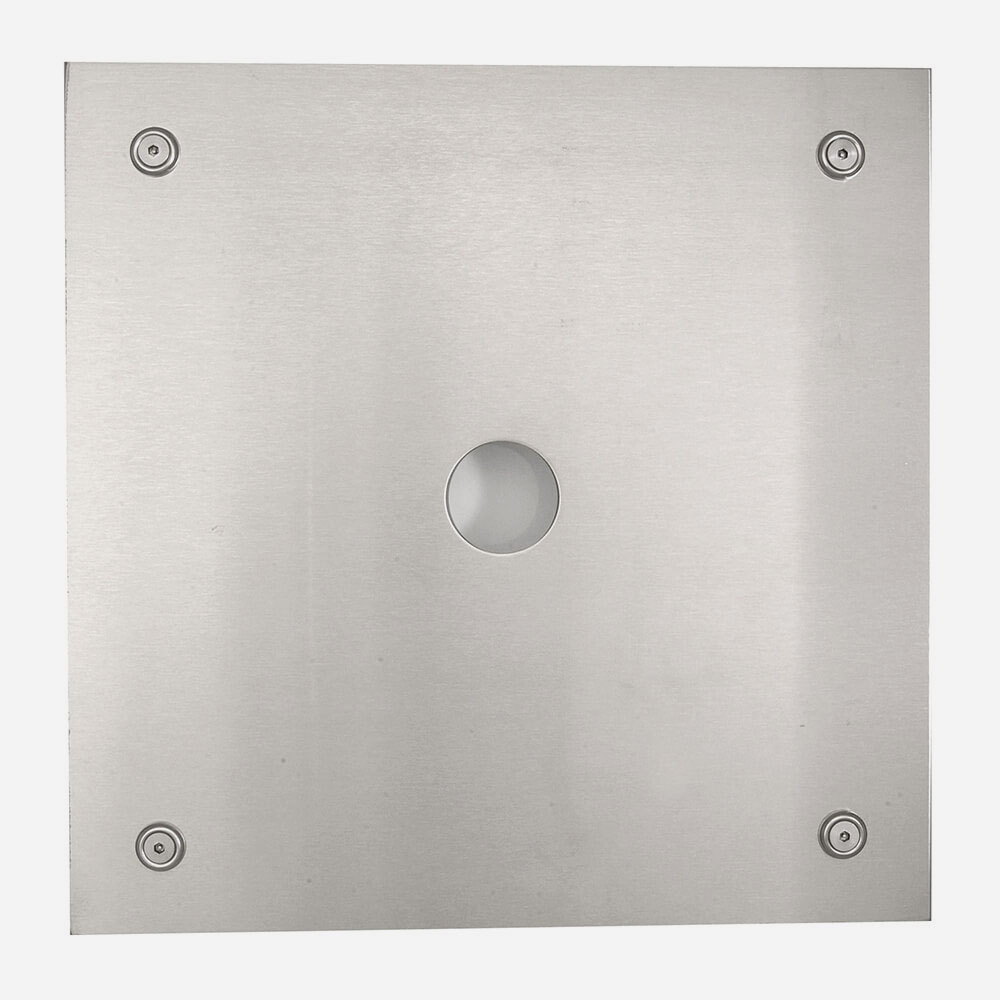

S009	13.5 x 13.5 Inch Panel with 12 x 12 Inch Frame for Urinal Flush Valve

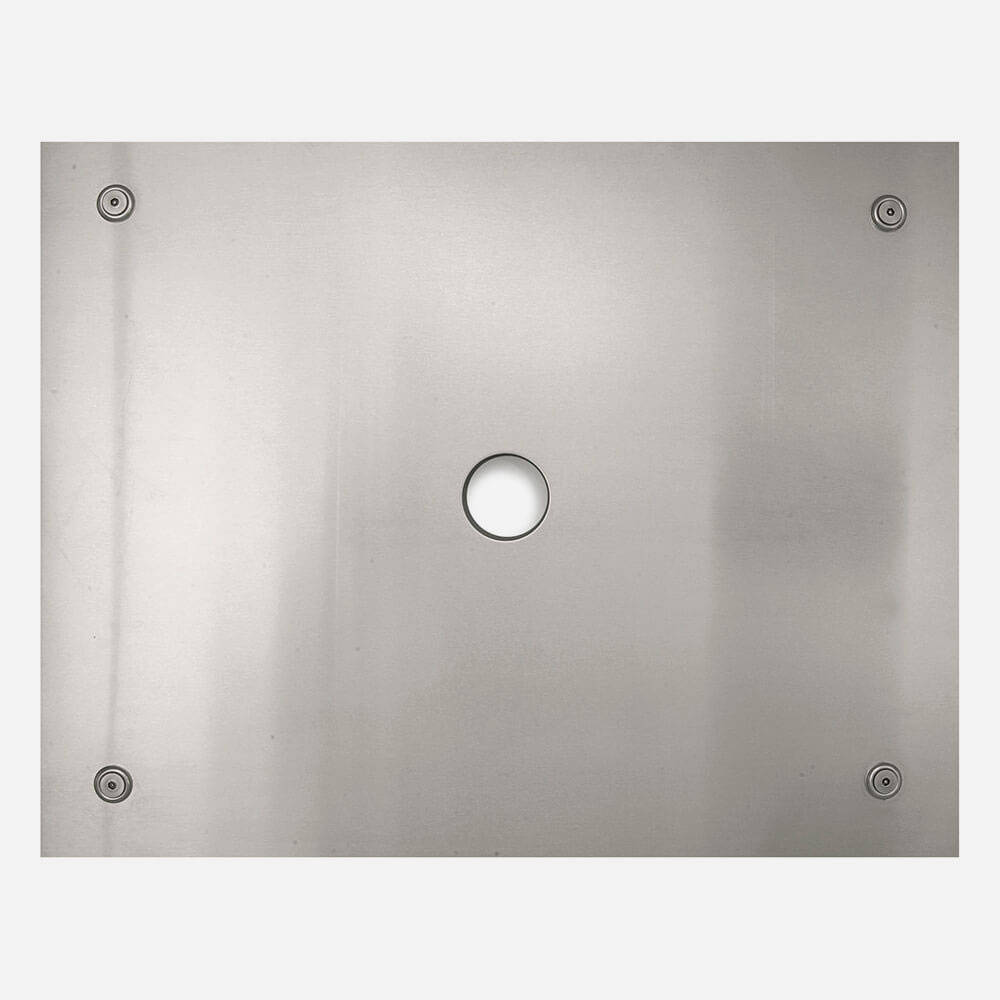

S010	15 x 19 Inch Panel with 13 x 17 Inch Frame for Toilet Flush Valve
