Recessed Valve Box
Model VB Series
Submittal
Submittal VB Valve Box (English pdf)


Model VB Series

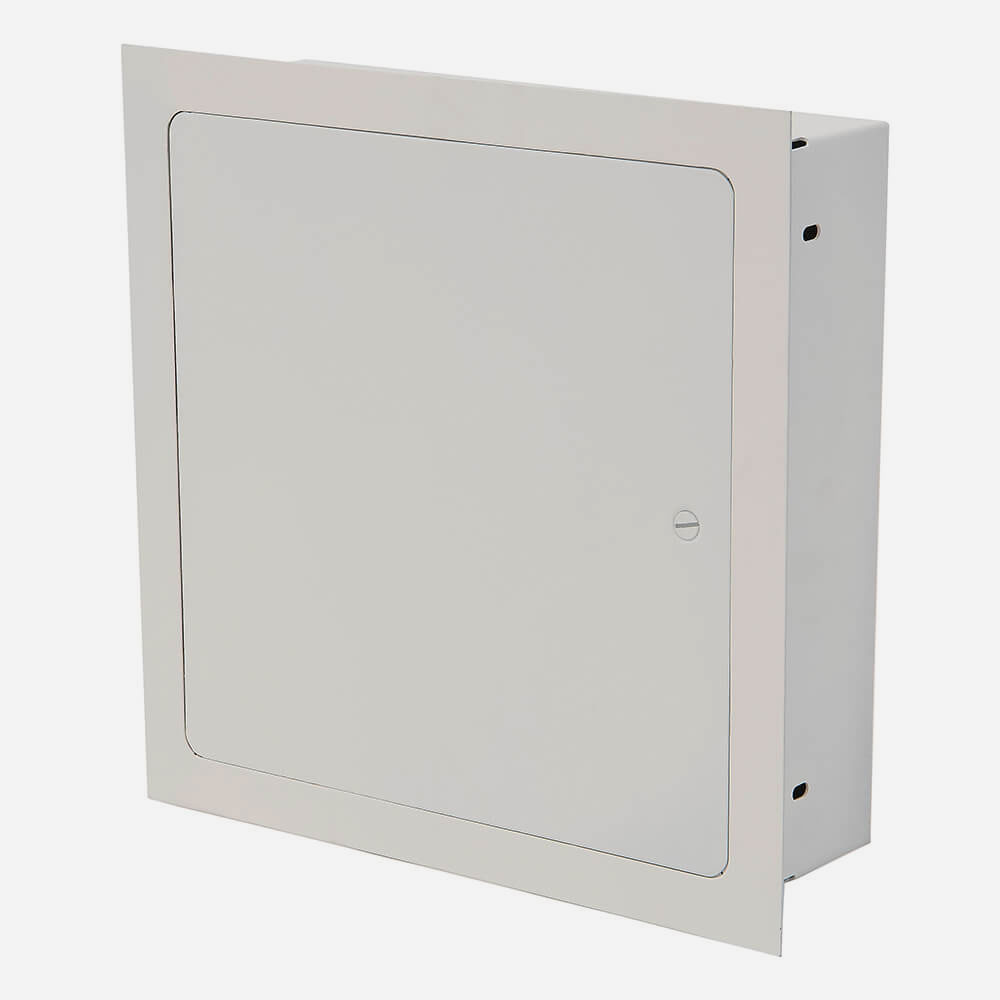

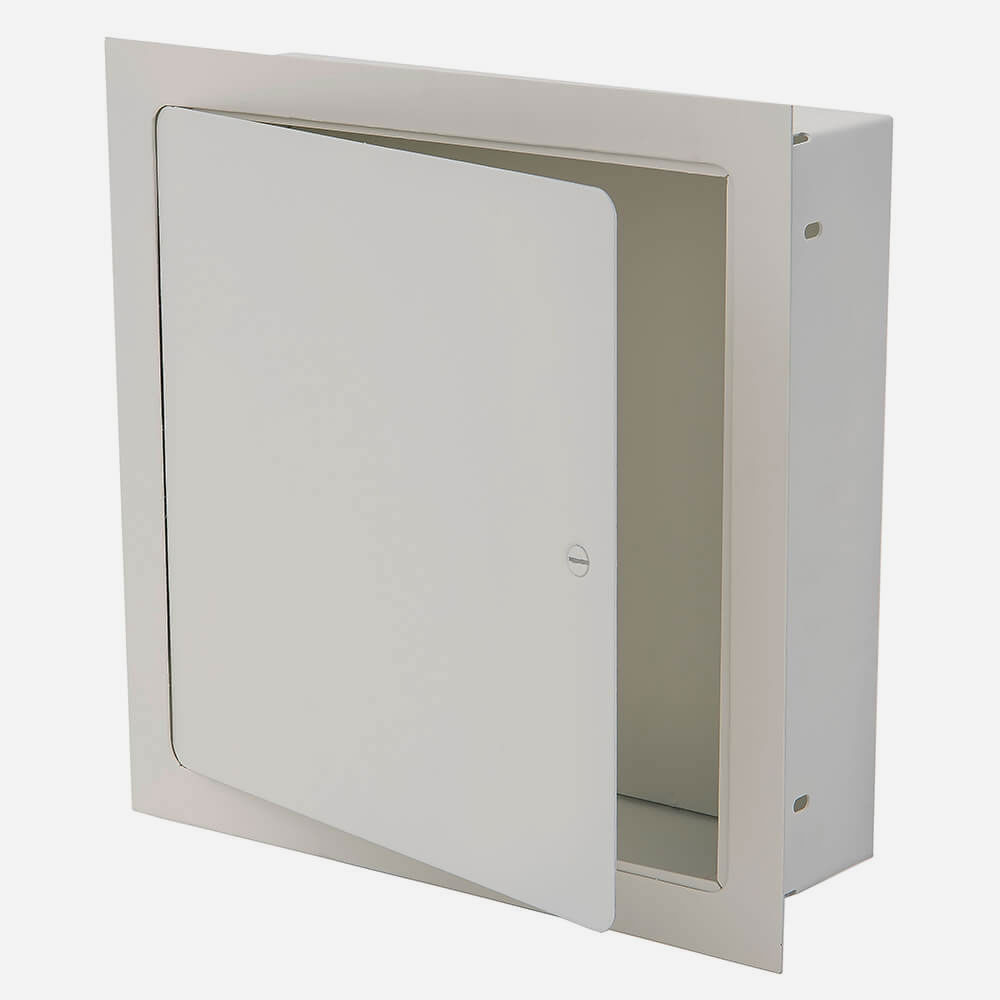

Recessed Valve Box
Access door and frame shall be fabricated from 16 gauge, galvannealed steel with a prime coat finish suitable for painting. The door shall have rounded safety corners and a concealed continuous piano hinge. Frame shall be one-piece construction with no miters or welds on the face. Latch shall be screwdriver operated. The box shall be fully enclosed with 16 gauge, galvannealed steel with a prime coat finish suitable for painting.
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
![]() | ![]() | Recessed Valve Box | 2 MB | ||
![]() | ![]() | Who we are, Our History, Morris Group International Today | 27 MB |
Can't find what you are looking for? Get in touch
Specifications
Shows specifications for standard configuration. Configuration options may change specifications.
| Brand | Elmdor |
| Mount | Wall Mount, Off-Floor, Flush Mount |
| Material | Galvanized Steel |
Related Figure Numbers
Model | Description |
|---|---|
| VB8x8x4 | 8 x 8 x 4 Inch Nominal Size |
| VB8x8x6 | 8 x 8 x 6 Inch Nominal Size |
| VB12x12x4 | 12 x 12 x 4 Inch Nominal Size |
| VB12x12x6 | 12 x 12 x 6 Inch Nominal Size |
| VB14x14x4 | 14 x 14 x 4 Inch Nominal Size |
| VB14x14x6 | 14 x 14 x 6 Inch Nominal Size |
| VB16x16x4 | 16 x 16 x 4 Inch Nominal Size |
| VB16x16x6 | 16 x 16 x 6 Inch Nominal Size |
