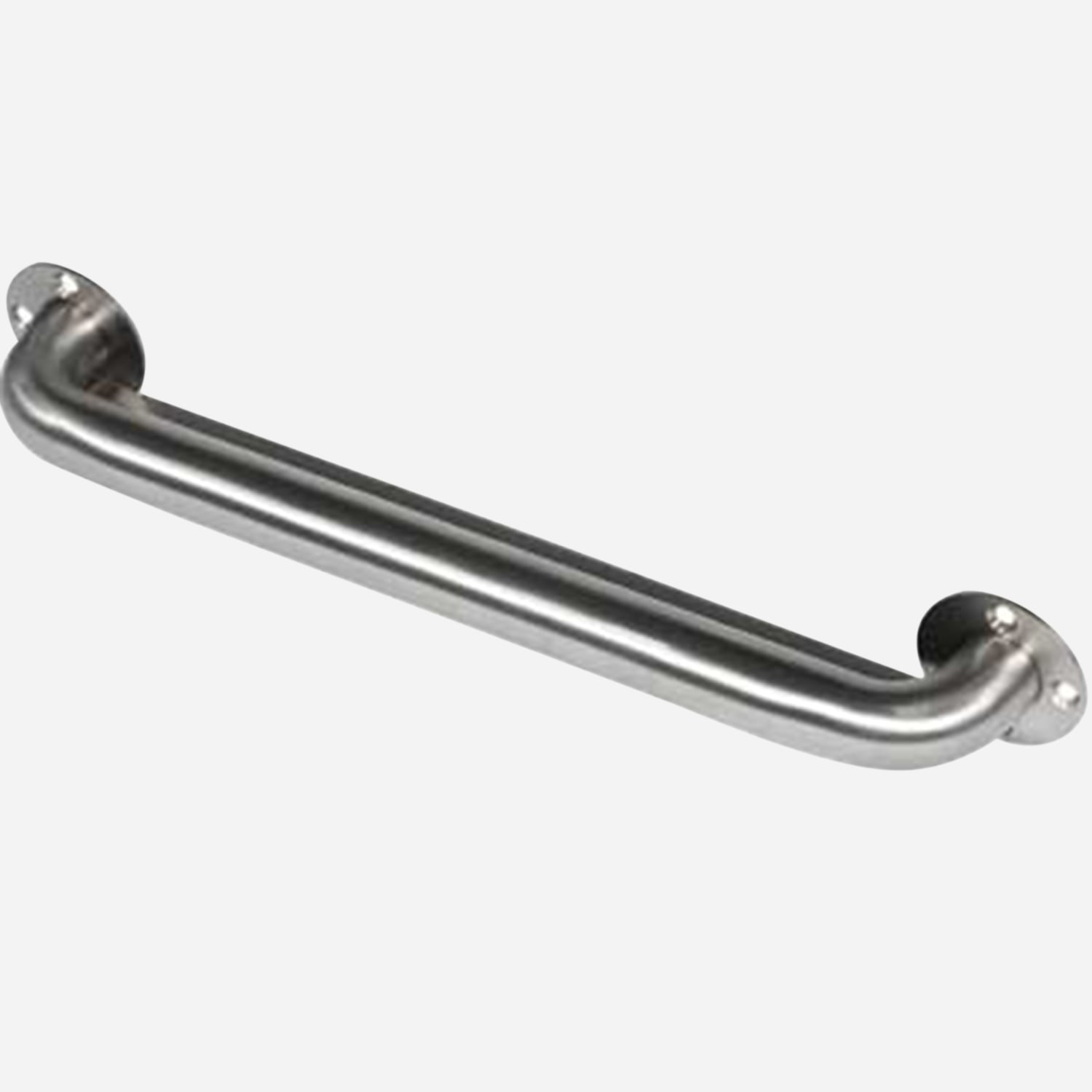

Ligature Resistant Grab Bar with Flat Closure Plate
Model WH1109 Series
Installation Instructions
Install Guide WH1109 Series Grab Bars (pdf)
Submittal
Submittal WH1109 Series Grab Bars (pdf)
Model WH1109 Series
Ligature Resistant Grab Bar with Flat Closure Plate

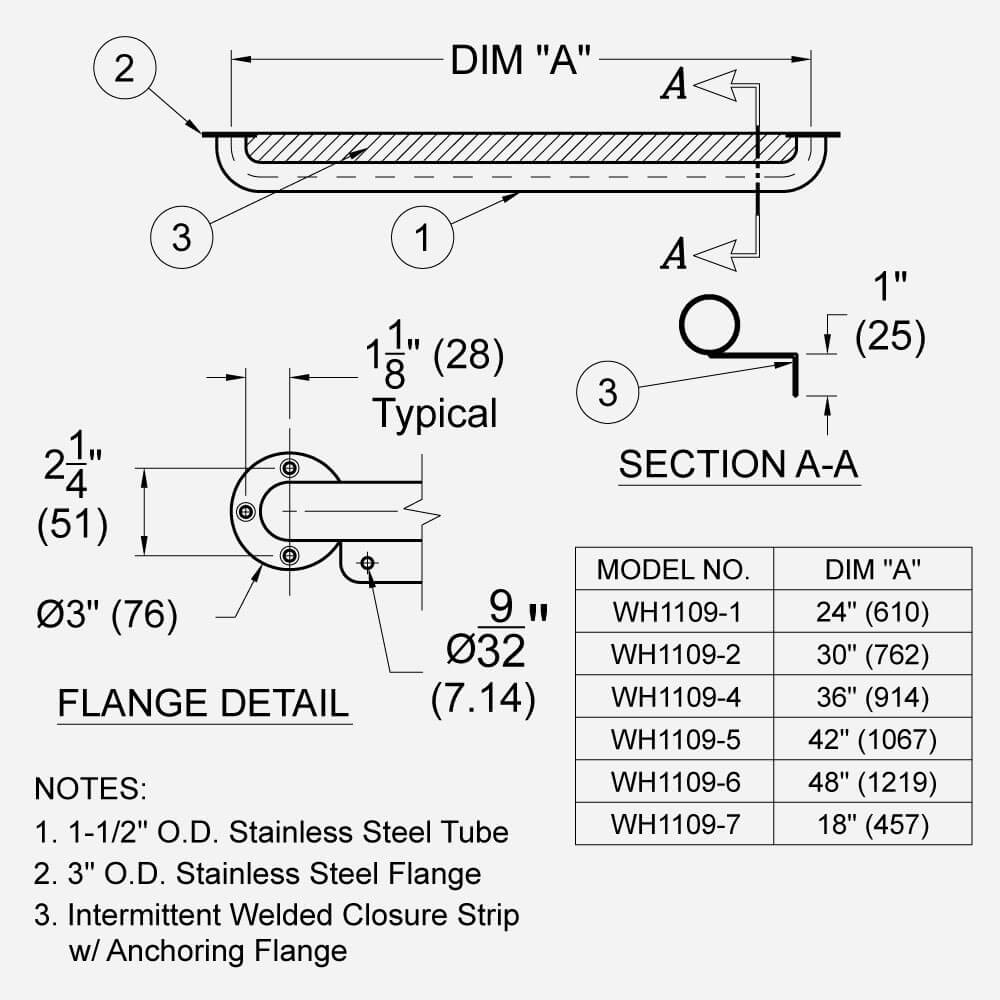

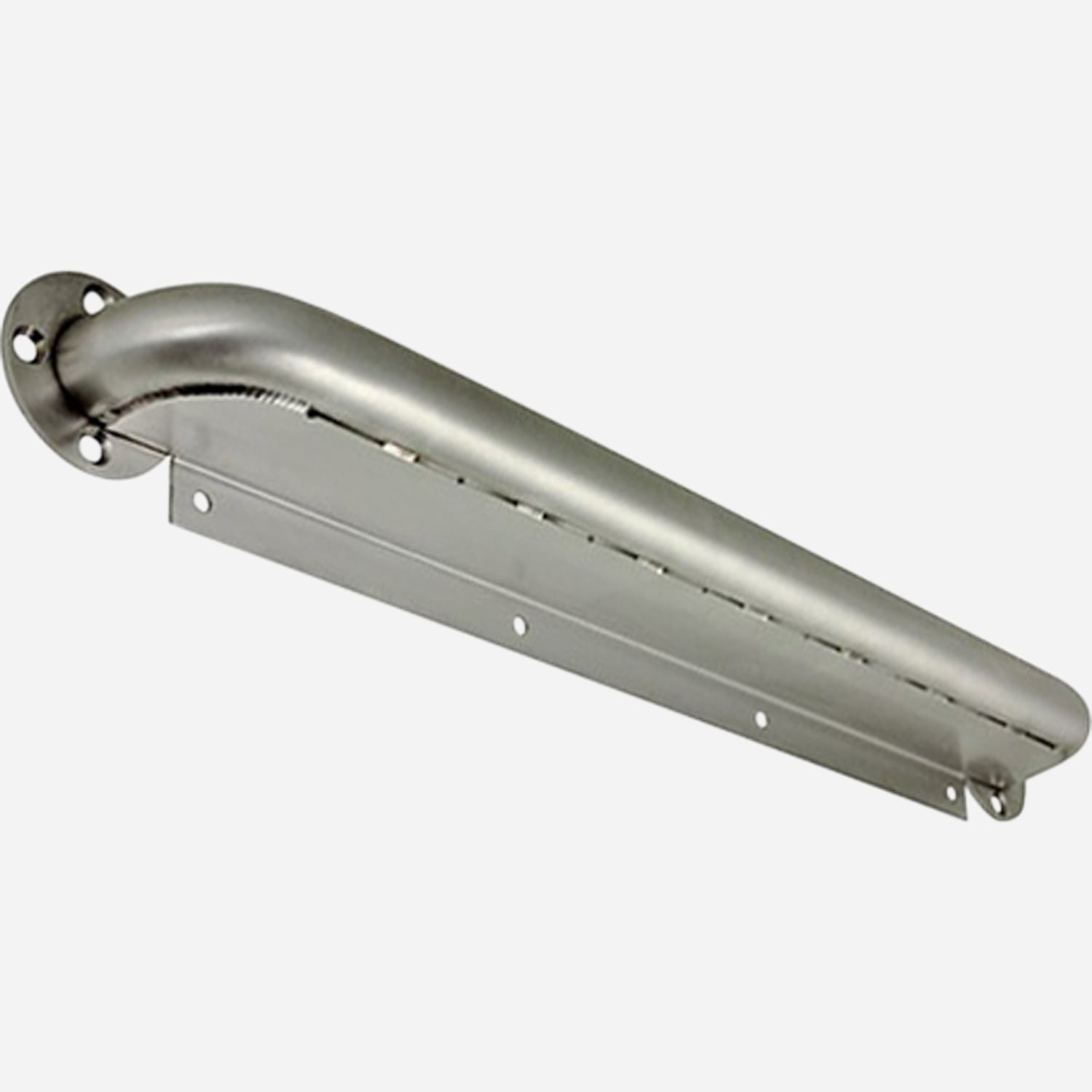

1.5 inch outer diameter 304 stainless steel tubing with 3 inch diameter wall flanges counter sunk for furnished 2 inch long stainless steel vandal resistant screws. The flat 14 gage closure plates on the bottom of the bar qualifies the product for ligature resistant use.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Ligature-Resistant Bar with Flat Closure Plate [WH1109-3-L/WH1109-3-L-EG10 | 32" (813 mm) left and 18" (457 mm) right; WH1109-3-R/WH1109-3-R-EG10 | 18" (457 mm) left and 32" (813 mm) right; WH1109-7/WH1109-7-EG10 | 18" (457 mm); WH1109-1/WH1109-1-EG10 | 24" (610 mm) WH1109-2/WH1109-2-EG10 | 30" (762 mm); WH1109-4/WH1109-4-EG10 | 36" (914 mm) WH1109-5/WH1109-5-EG10 | 42" (1,067 mm); WH1109-6/WH1109-6-EG10 | 48" (1,219 mm)] | 67 KB | ||
| | Ligature-Resistant Bar with Flat Closure Plate [WH1109-3-L/WH1109-3-L-EG10 | 32" (813 mm) left and 18" (457 mm) right; WH1109-3-R/WH1109-3-R-EG10 | 18" (457 mm) left and 32" (813 mm) right; WH1109-7/WH1109-7-EG10 | 18" (457 mm); WH1109-1/WH1109-1-EG10 | 24" (610 mm) WH1109-2/WH1109-2-EG10 | 30" (762 mm); WH1109-4/WH1109-4-EG10 | 36" (914 mm) WH1109-5/WH1109-5-EG10 | 42" (1,067 mm); WH1109-6/WH1109-6-EG10 | 48" (1,219 mm)] | 116 KB | ||
| | BestCare® Ligature-Resistant Bar with Flat Closure Plate [WH1109-3-L/WH1109-3-L-EG10 | 32" (813 mm) left and 18" (457 mm) right; WH1109-3-R/WH1109-3-R-EG10 | 18" (457 mm) left and 32" (813 mm) right; WH1109-7/WH1109-7-EG10 | 18" (457 mm); WH1109-1/WH1109-1-EG10 | 24" (610 mm) WH1109-2/WH1109-2-EG10 | 30" (762 mm); WH1109-4/WH1109-4-EG10 | 36" (914 mm) WH1109-5/WH1109-5-EG10 | 42" (1,067 mm); WH1109-6/WH1109-6-EG10 | 48" (1,219 mm)] | 500 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | BestCare® Ligature-Resistant Bar with Flat Closure Plate [WH1109-3-L/WH1109-3-L-EG10 | 32" (813 mm) left and 18" (457 mm) right; WH1109-3-R/WH1109-3-R-EG10 | 18" (457 mm) left and 32" (813 mm) right; WH1109-7/WH1109-7-EG10 | 18" (457 mm); WH1109-1/WH1109-1-EG10 | 24" (610 mm) WH1109-2/WH1109-2-EG10 | 30" (762 mm); WH1109-4/WH1109-4-EG10 | 36" (914 mm) WH1109-5/WH1109-5-EG10 | 42" (1,067 mm); WH1109-6/WH1109-6-EG10 | 48" (1,219 mm)] | 101 KB |
Specifications
| Brand | Acorn Engineering Co. |
| Mount | Off-Floor, Wall Mount, Front Mount, Surface Mount |
| Material | Stainless Steel |
| Compliance | ANSI, ADA, UFAS |
| Additional Benefits | Contains Recycled Material, Recyclable, Ligature Resistant |
