Model A9100080-A

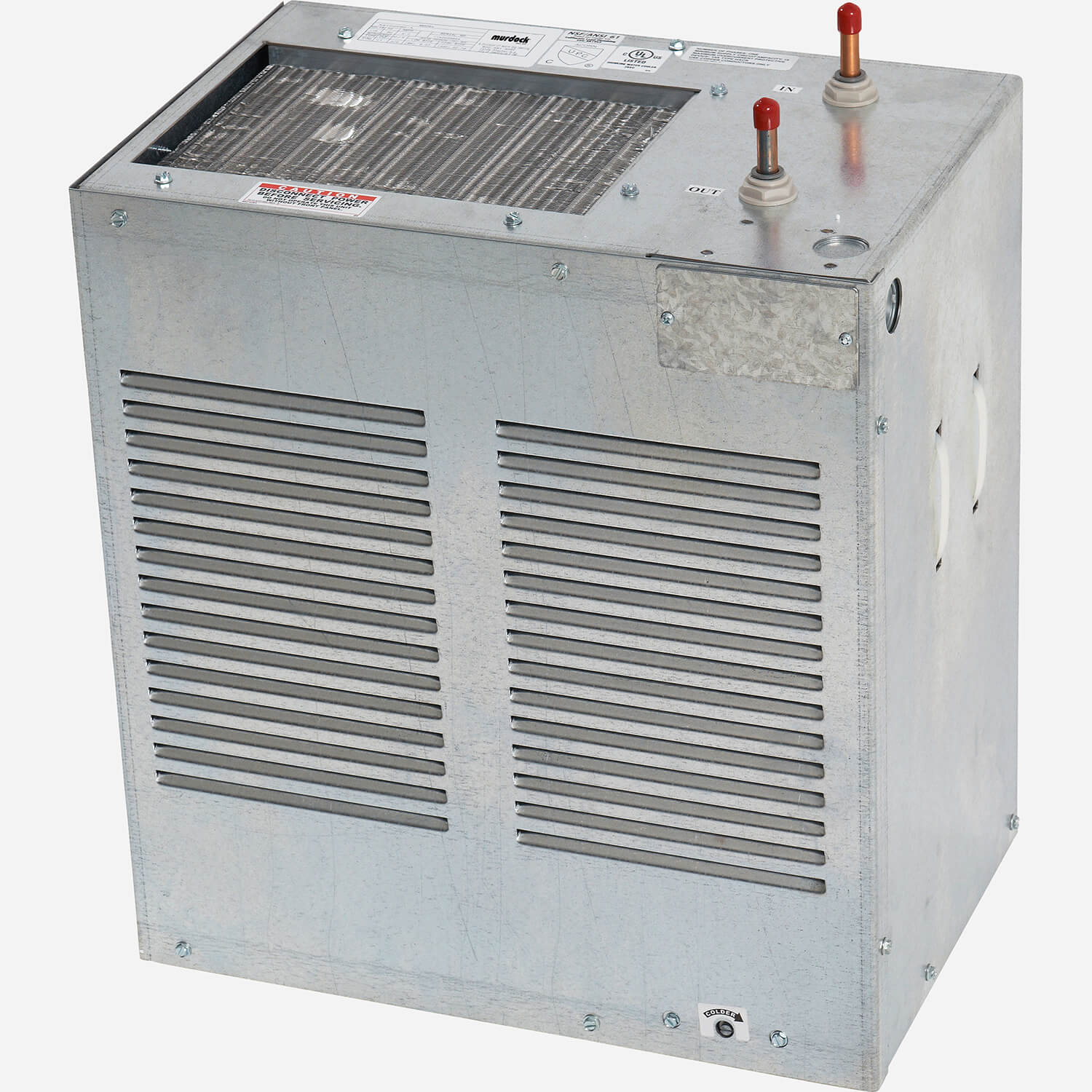

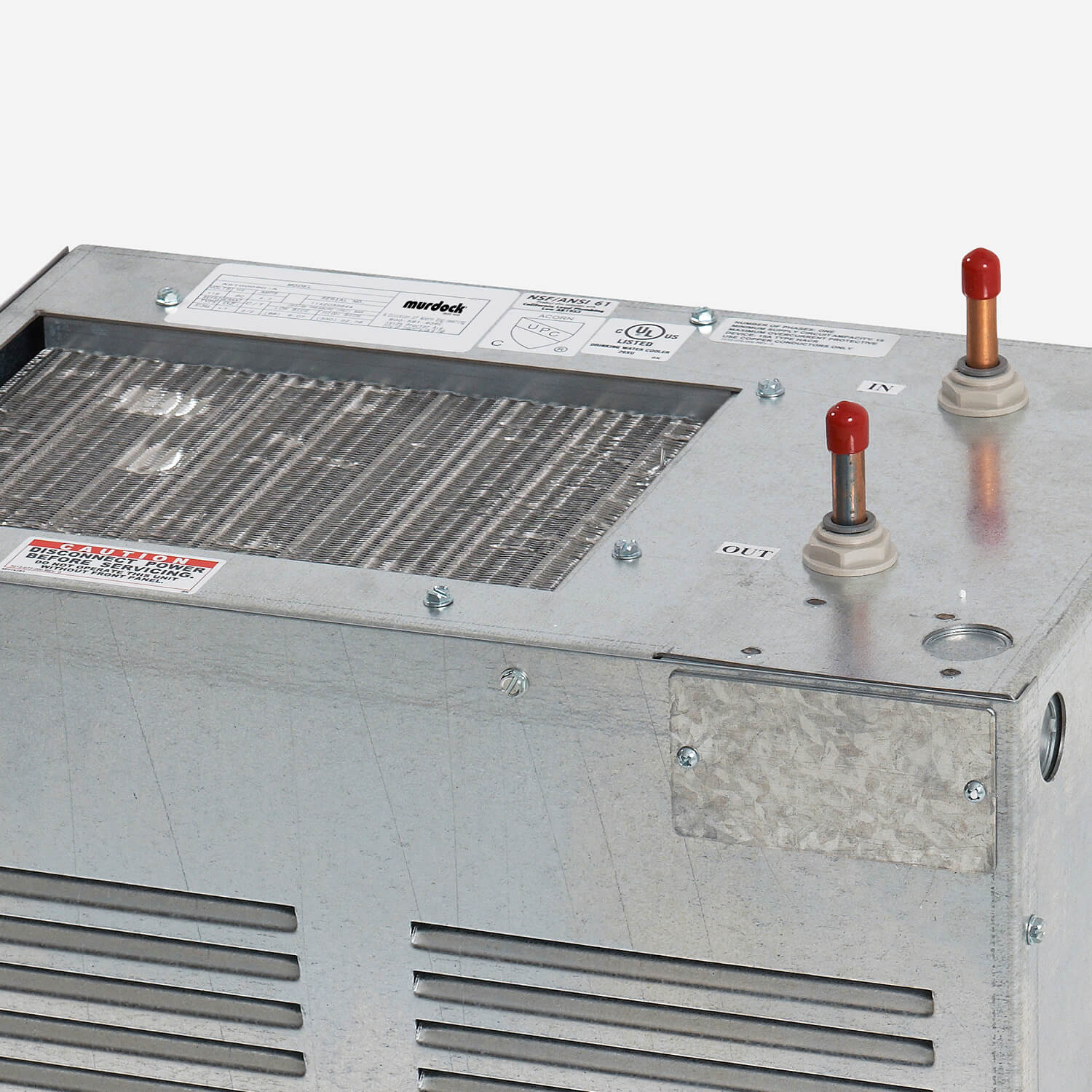

8 GPH Remote Chiller for Refrigerated Drinking Fountain

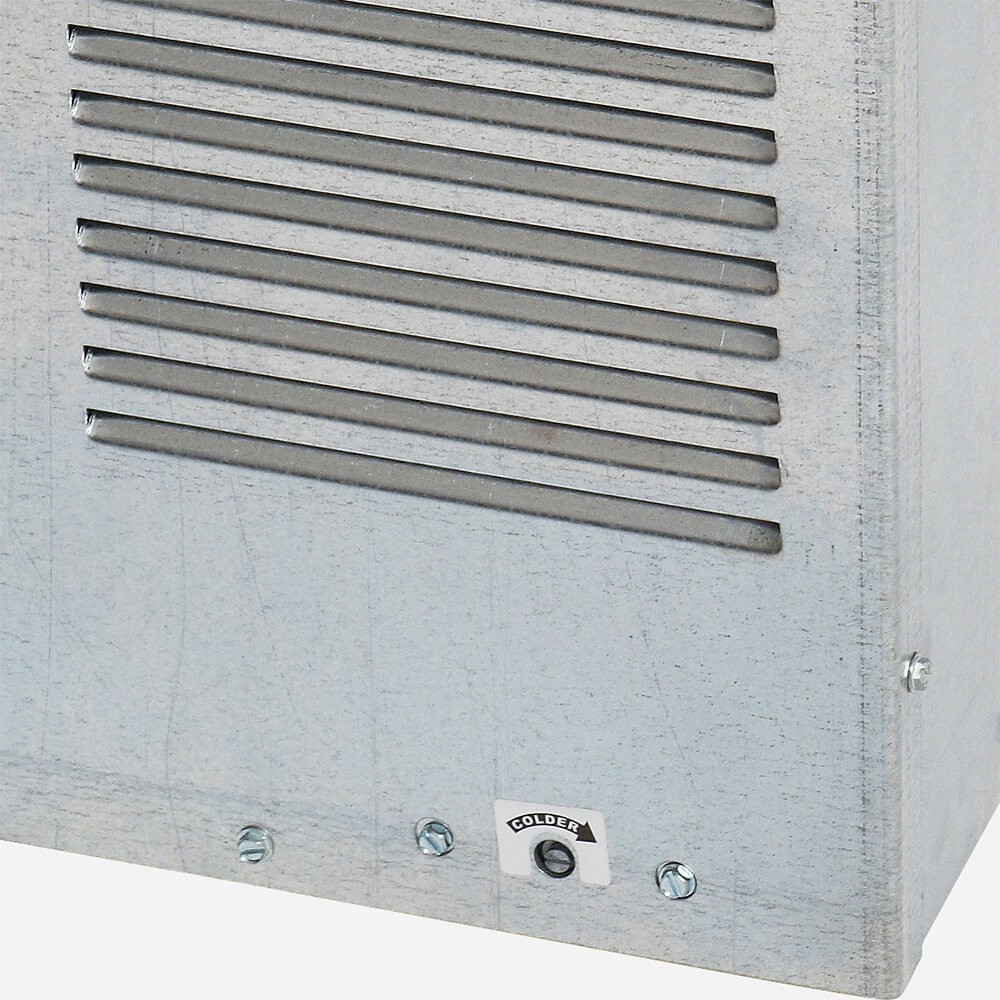

Model A9100080-A is a remote water chiller intended for indoor installation (not rated for outdoor use), and shall deliver 8 gallons (30.3 liters) per hour of water 50°F (10°C) cooled from 80°F (26.7°C) inlet water and 90°F (32.2°C) ambient. The evaporator shall be an insulated, tube on the tube. The cooling system shall use R-134a refrigerant and be capillary tube regulated. An adjustable thermostat with an off-position shall control the refrigeration system.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 8 GPH Remote Chiller for Refrigerated Drinking Fountain | 0 | 1 MB | ||
| | 8 GPH Remote Chiller for Refrigerated Drinking Fountain | 0 | 739 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 21 MB |
Specifications
| Brand | Murdock Manufacturing |
| Material | Galvanized Steel |
| Compliance | NSF 61 Section 9-1997, U.S. Federal Public Lead Free Law 111-380, ANSI A117.1, Air Conditioning and Refrigeration Institute Standard 1010, CE (220 Volts), UL Listed (US & Canada) |
