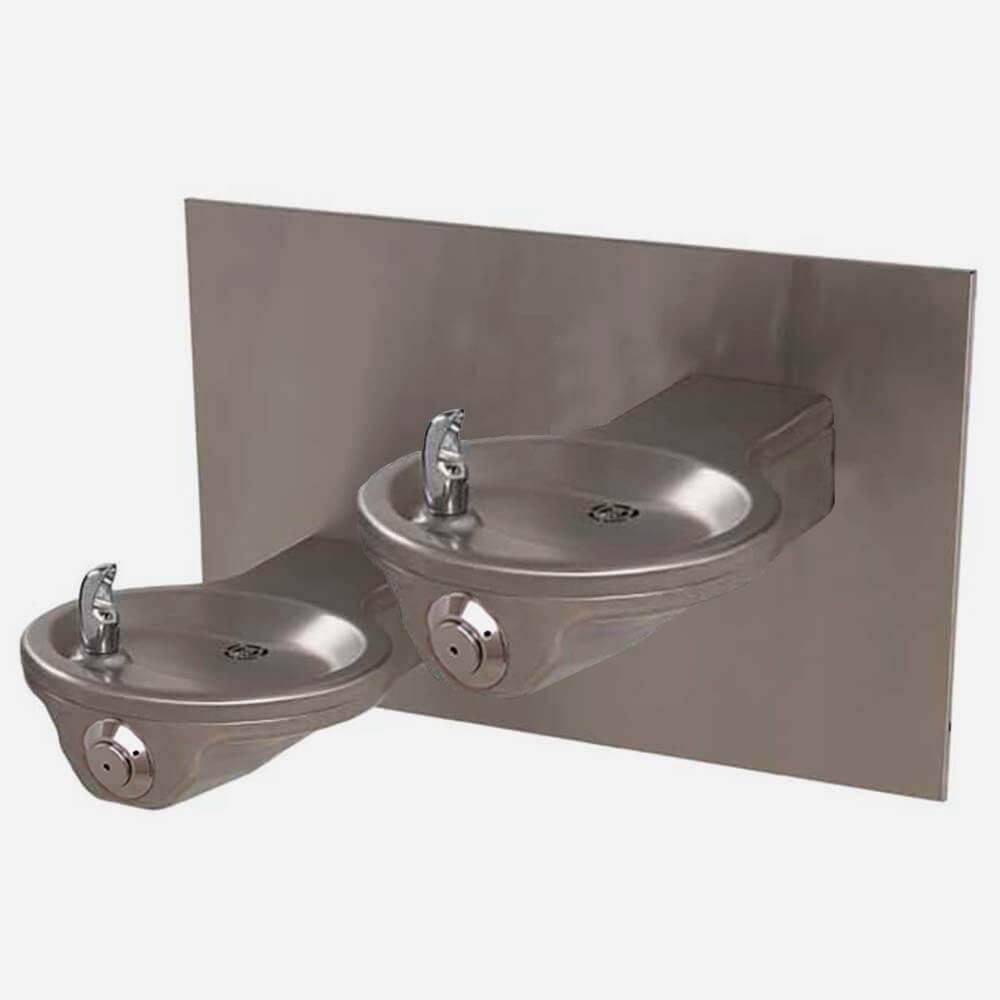

Barrier-Free Oval Bowl Bi-Level Wall Mount Drink Fountain
This unit features two oval bowl 18 gauge, 304 stainless steel drinking fountains mounted on a 32 inch (812.8 mm) wide back panel. Each fountain has a lead-free polished, stainless steel, anti-rotation, non-squirt bubbler, and integral P-trap. Collectively, the fountain is child or adult ADA compliant when properly installed. The unit does not provide refrigerated water.
The patented pushbutton auto-stop feature seamlessly incorporates the circular heavy-duty vandal-resistant button for additional security while allowing easy access to the pushbutton for routine maintenance. Accessing the strainer filter under the basin by loosening the strainer plug engages an autostop, making it unnecessary to turn off the water at the angle stop. The filter can be easily rinsed with clean water. The stream height exiting the bubbler is also easily adjusted right from the front of the button. All this simple, routine maintenance can be done without the time-consuming disassembly of the unit.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Stainless Steel Oval Bowl ADA Wall Mount Bi-Level Drinking Fountain | 0 | 1 MB | ||
| | Stainless Steel Oval Bowl ADA Wall Mount Bi-Level Drinking Fountain | 0 | 604 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 21 MB | ||
| | Stainless Steel Oval Bowl ADA Wall Mount Bi-Level Drinking Fountain - Option FRA4 Freeze-Resistant | 0 | 271 KB |
Specifications
| Brand | Murdock Manufacturing |
| Mount | Wall Mount |
| Material | Stainless Steel |
| Compliance | NSF 61 Section 9-1997, U.S. Federal Public Lead Free Law 111-380, ANSI A117.1, ADA Standing Person, ADA Child, UPC Green - Water Efficiency (US & Canada) |
| Additional Benefits | Contains Recycled Material, Recyclable, Water Saving |
Models
Standard - Lower ADA Fountain on Left Side
- A132400S-VR
- All-Stainless Steel; Lead-Free, Polished Stainless Steel Bubblers
- A132400F-VR
- All-Stainless Steel; Flexible Bubblers
- A132400S-VR-HP
- High Polish Stainless Steel; Lead-Free, Polished Stainless Steel Bubblers
- A132400F-VR-HP
- High Polish Stainless Steel; Flexible Bubblers
- A132200S-VR
- Bronze Finish; Lead-Free, Bronze Finish Stainless Steel Bubblers
- A132200F-VR
- Bronze Finish; Flexible Bubblers
- A132300S-VR
- High Polish Gold; Lead-Free, High Gold Polished Stainless Steel Bubblers
- A132300F-VR
- High Polish Gold; Flexible Bubblers
Lower ADA Fountain on Left Side
- A132400S-VR-RBL
- All-Stainless Steel; Lead-Free, Polished Stainless Steel Bubblers
- A132400F-VR-RBL
- All-Stainless Steel; Flexible Bubblers
- A132400S-VR-HP-RBL
- High Polish Stainless Steel; Lead-Free, Polished Stainless Steel Bubblers
- A132400F-VR-HP-RBL
- High Polish Stainless Steel; Flexible Bubblers
- A132200S-VR-RBL
- Bronze Finish; Lead-Free, Bronze Finish Stainless Steel Bubblers
- A132200F-VR-RBL
- Bronze Finish; Flexible Bubblers
- A132300S-VR-RBL
- High Polish Gold; Lead-Free, High Gold Polished Stainless Steel Bubblers
- A132300F-VR-RBL
- High Polish Gold; Flexible Bubblers
All units include 32" (812.8 mm back panel)
Popular Options/Accessories
- W32-CSC
- Concealed Support Carrier
- FRA1
- Freeze-resistant Valve
- MF8
- Mounting Frame for Bi-Level Fountain
- SK4
- Skirt Kit for Upper Unit
- WF1
- 1,500 Gallon Capacity Water Filter
Other options may be available see submittals
