Member of Morris Group International
Barrier-Free Wall Mount Round Bi-Level Stainless Steel Drinking Fountain
Legacy Model A1C2 Series

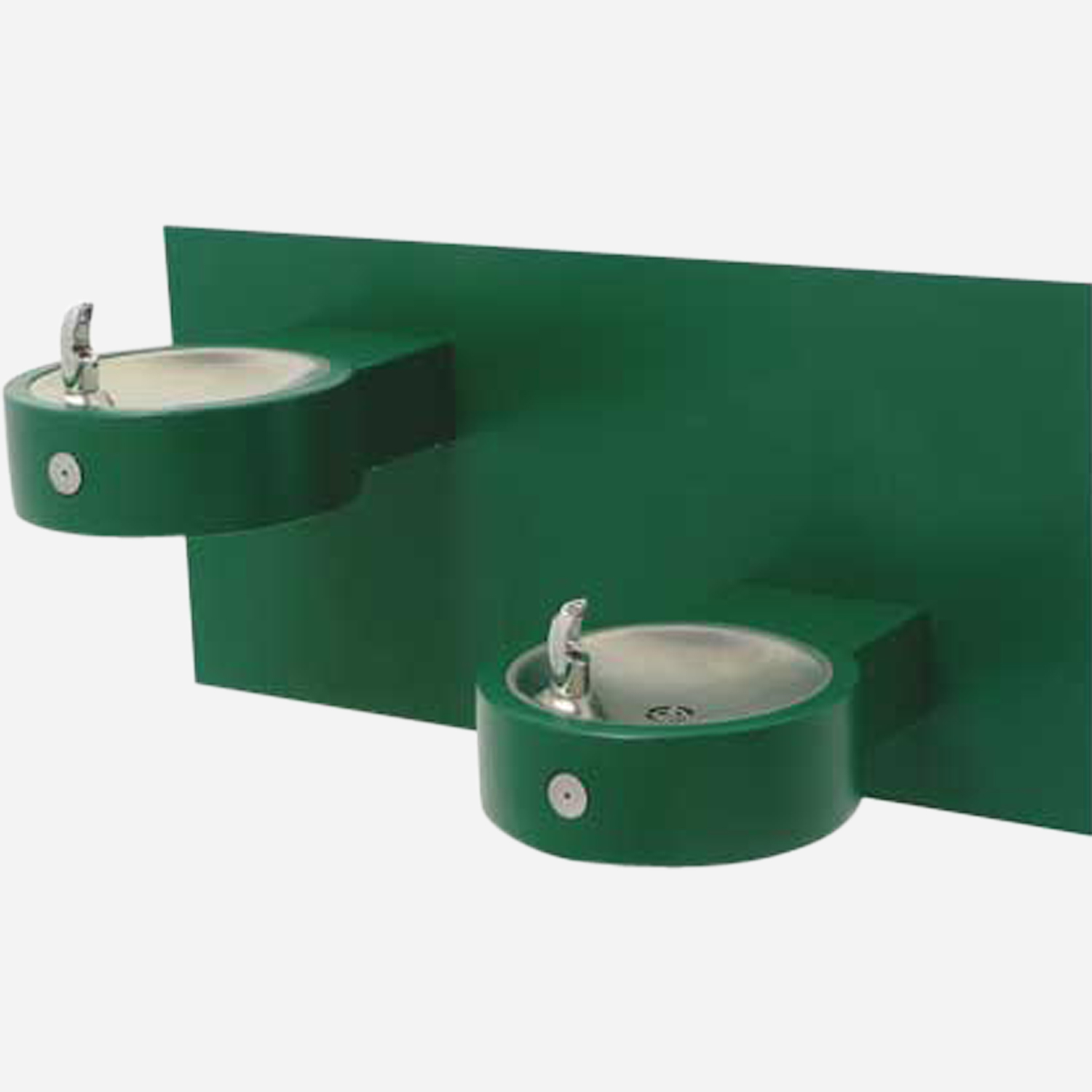

This two-station bi-level drinking fountain features a back panel with two round steel fountains. Fountain arms are heavy-duty, 12 gauge stainless steel with a corrosion and scratch-resistant finish that is resistant to sunlight, heat, moisture, and wear. The fountain bowl is constructed from 18 gauge, 304 stainless steel. Each unit is equipped with a lead-free stainless steels bubbler. The fountain is ADA and ADA standing person compliant and TAS or TAS 11-15 compliant when properly installed. It is available in a stainless steel finish or in your choice of three colors: Textured Alpine Blue, Textured Fairway Green, or Textured Firehouse Red. A freeze-resistant model is available - specify with option -FRA4.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | ADA Wall Mount Round Bi-Level Stainless Steel Drinking Fountain | 0 | 529 KB | ||
| | ADA Wall Mount Round Bi-Level Stainless Steel Drinking Fountain | 0 | 782 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 21 MB |
Specifications
| Brand | Murdock Manufacturing |
| Mount | Off-Floor, Wall Mount, Front Mount, Surface Mount |
| Material | Stainless Steel |
| Compliance | NSF 61 Section 9-1997, U.S. Federal Public Lead Free Law 111-380, ANSI A117.1, ADA Standing Person, ADA Child, UPC Green - Water Efficiency (US & Canada) |
| Additional Benefits | Contains Recycled Material, Recyclable, Water Saving |
Models
GRD65-BP6

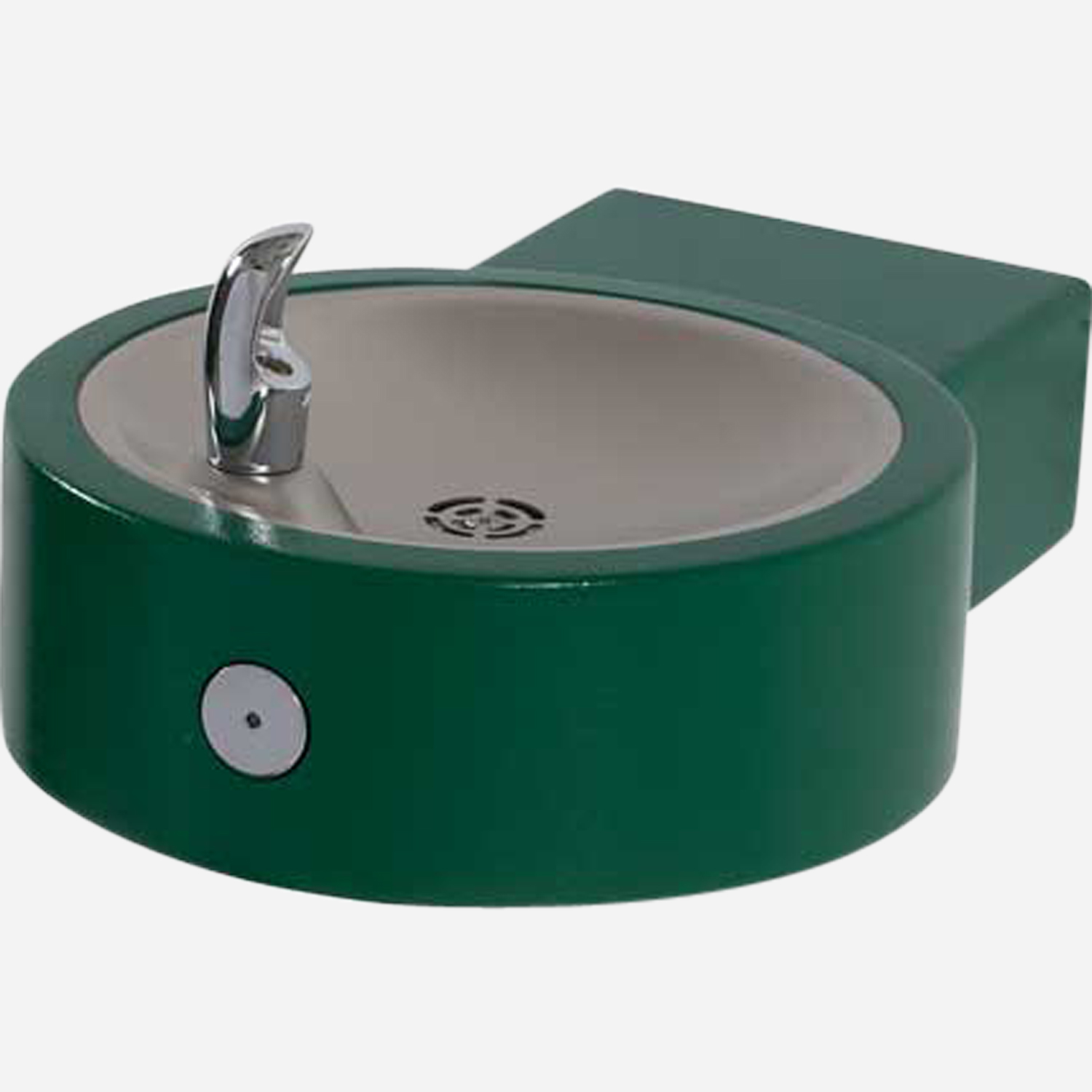

Textured Fairway Green
GRD64-BP6

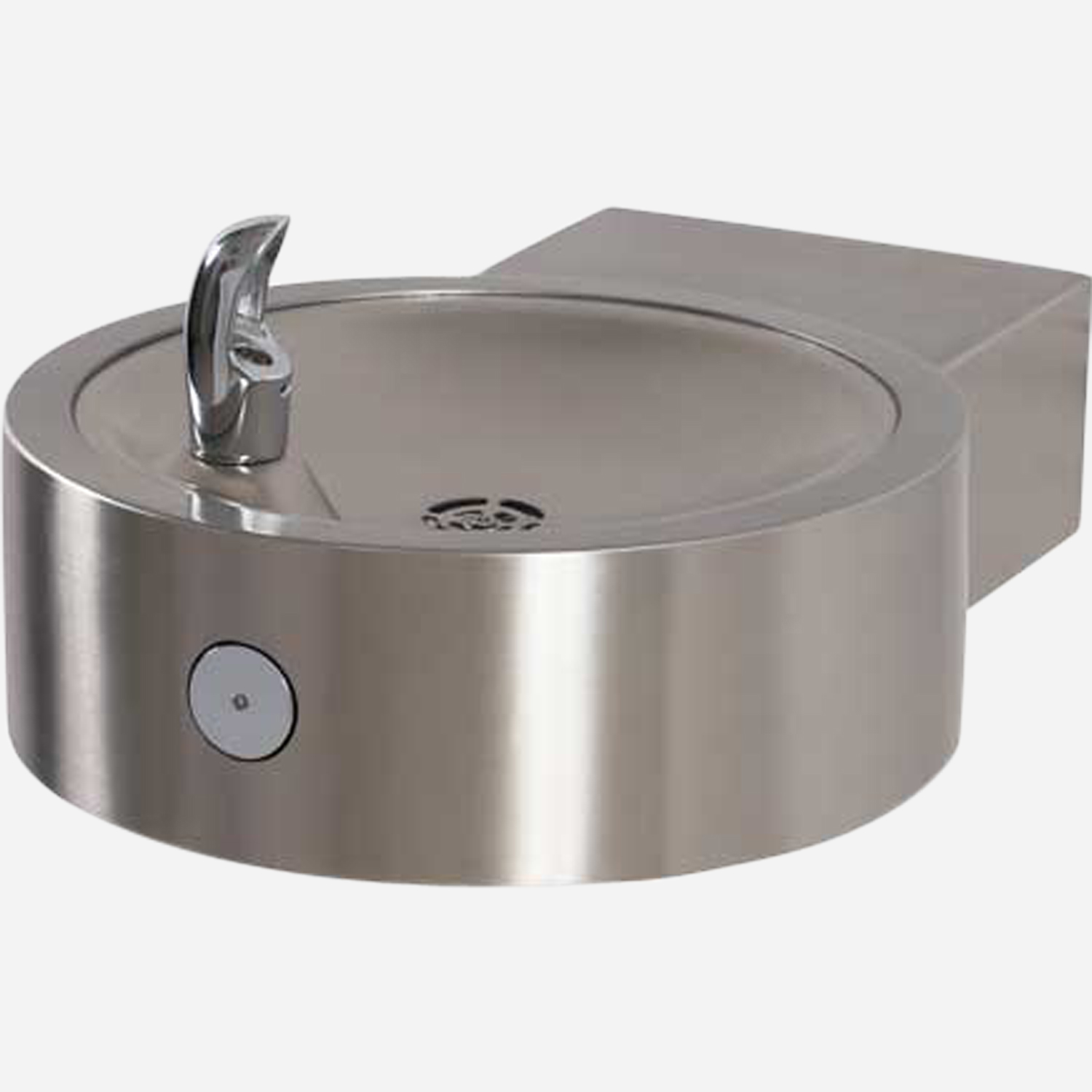

All-Stainless Steel
GRD66-BP6
Textured Firehouse Red
GRD67-BP6

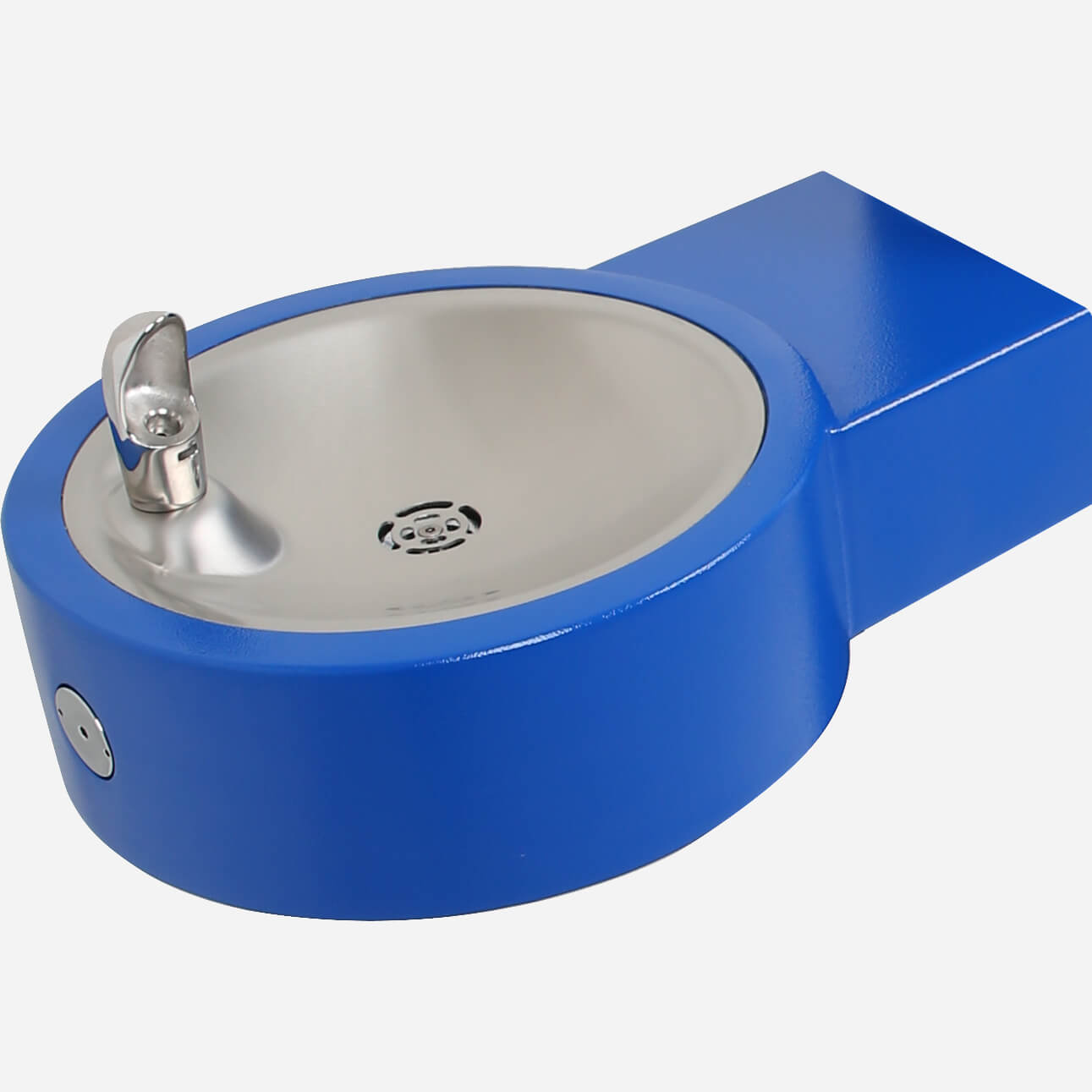

Textured Alpine Blue
Popular Options/Accessories
- CSC
- Concealed support carrier
- FRA4
- Freeze resistant valve system
- RBL
- Reverse bi-level configuration (lower ADA unit on the left side)
Other options may be available see submittals
