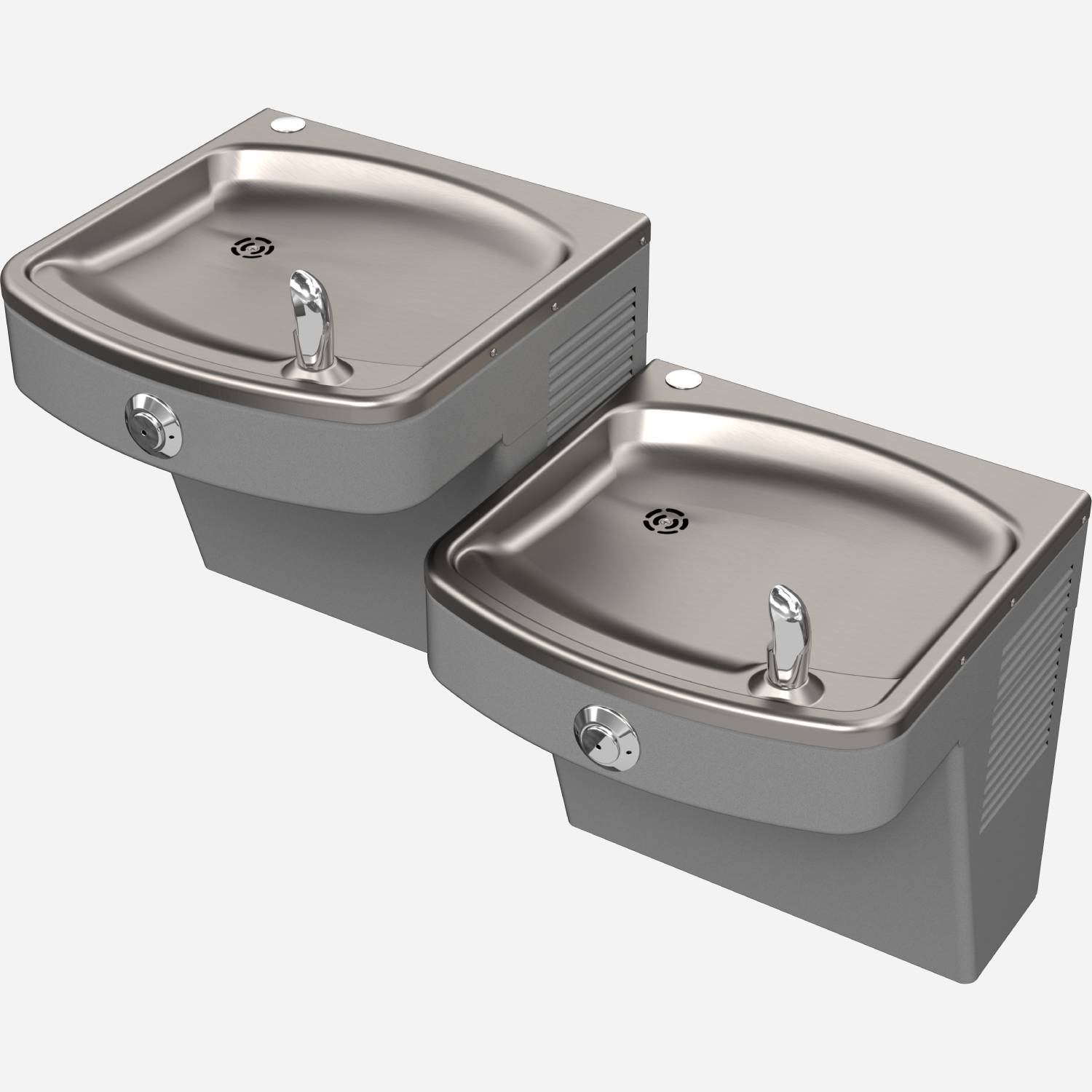

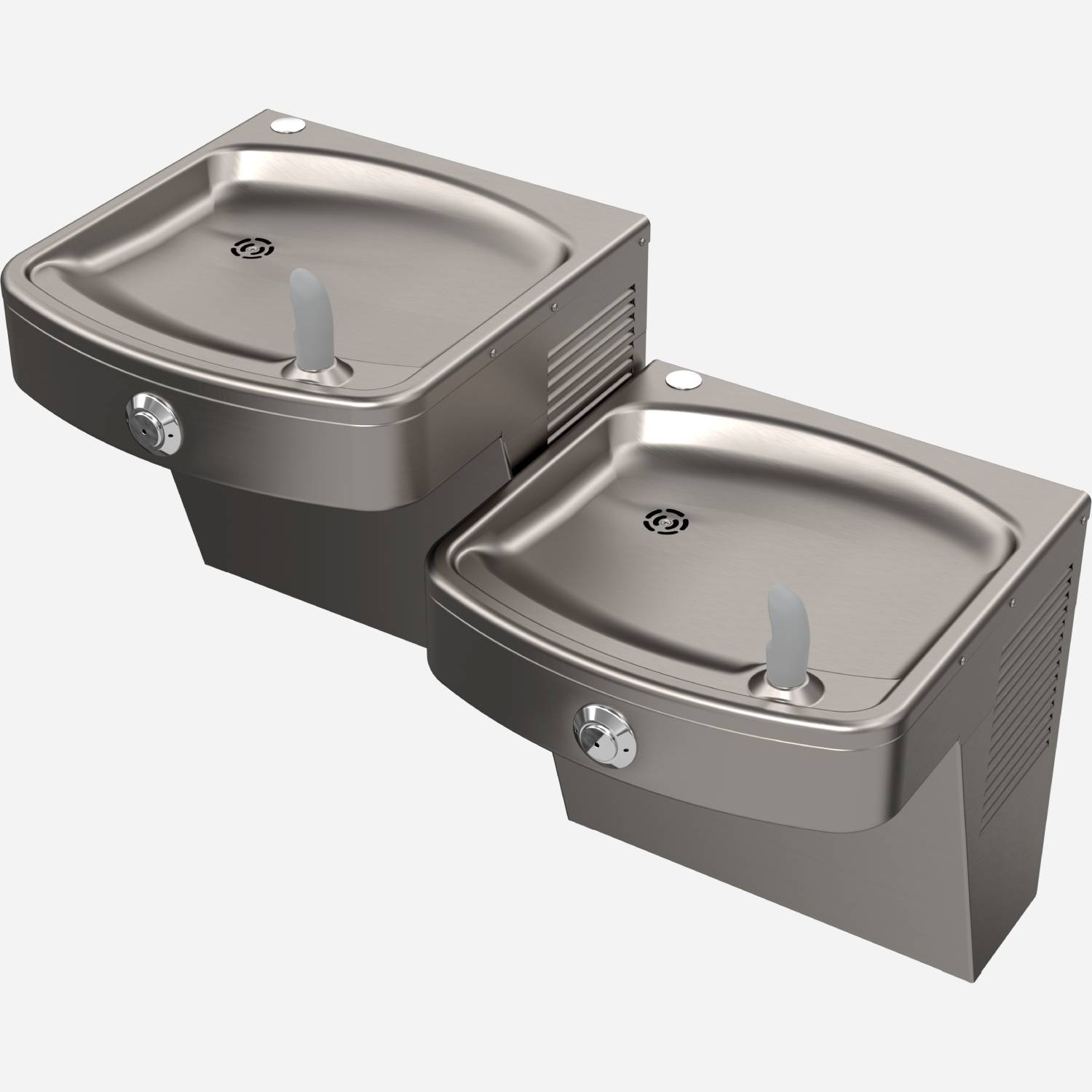

Barrier-Free, Wall Mounted Universal Bi-Level Water Cooler with Vandal-Resistant Round Buttons and Mounting

A172.8-UG-VR Series includes a self-contained, pressurized universal bi-level water cooler unit that delivers a minimum of 8.0 GPH (30.3 LPH) of water at 50°F (10°C) cooled from 80°F (26.7°C) inlet water and 90°F (32.2°C) ambient. Each cooler shall be activated from an anti-microbial front pushbutton using less than 5 pounds (2.27 kilogram) of force. Bubblers shall deliver a 0.3 gallons (1.14 liters) per minute flow, have an anti-microbial flexible guard with an integrally designed non-squirt feature, and operate on a water pressure range of 20-105 psig (1.38 to 7.24 bar). Basins shall be constructed from 304 stainless steel and have an integral drain. Cabinets shall be either galvanized steel with Textured Grey powder coat or all-stainless steel. The cooling system shall use R-134a refrigerant and be capillary tube regulated. An adjustable thermostat with an off-position shall regulate the refrigeration system. As the bi-level unit features universal mounting, either the water cooler (right or left) can be mounted in the lower position.

The patented pushbutton auto-stop feature seamlessly incorporates the circular heavy-duty vandal-resistant buttons for additional security while allowing easy access to the pushbutton for routine maintenance. Accessing the strainer filter under the basin by loosening the strainer plug engages an autostop, making it unnecessary to turn off the water at the angle stop. The filter can be easily rinsed with clean water. The stream height exiting the bubbler is also easily adjusted right from the front of the button. All this simple, routine maintenance can be done without the time-consuming disassembly of the unit.

The A172.8-UG-VR units feature vandal-resistant circular buttons and vandal-resistant fixture mounting.

Other units are available: the basic A172.8-UG and units including Sensor-Activation, non-refrigeration, please contact us for more info.
