H2O-To-Go!® Sensor Activated Bottle Filler for Barrier-Free Water Cooler

Find A Representative
Model BF12 Series
Installation Instructions
Manual BF11 and BF12 Series Bottle Filler (English pdf)
Submittal
Submittal BF12 Bottle Filler (English pdf)
Model BF12 Series

H2O-To-Go!® Sensor Activated Bottle Filler for Barrier-Free Water Cooler

Fill up. Cool down. Get going. H2O-To-Go!® Indoor Bottle Fillers are an eco-friendly alternative to plastic water bottles. With a slimmer body and more inviting aesthetics than traditional bottle fillers, H2O-To-Go!® ensures maximum style, functionality, and hydration.

This barrier-free ADA-compliant bottle filler uses refrigerated water from the host water cooler to provide users with an easy way to fill water bottles. The bottle filler helps the environment by reducing the waste associated with single-serve plastic water bottles. This unit is sensor-activated.

Bottle Filler unit may be used on certain existing Murdock Manufacturing units or models which include Bottle Filler. The existing drinking fountain may require alteration for connection to Bottle Filler.

Unit to include sensor activation with a 20 second maximum run time. Housing construction to be heavy gauge stainless steel with a #4 satin finish and to include components manufactured from antimicrobial, impact-resistant ABS. LED Lights illuminate the Bottle Fill area and brighten when a bottle is detected. Bottle Filler shall provide approximately 1 gallon (3.79 liters) per minute flow rate with a Laminar Flow Spout to minimize splashing.

Option -BCD (Bottle Counter Display) indicates the quantity of 16-ounce (0.47 liter) disposable Plastic Bottles saved from a landfill and also displays the water filter status.

Optional -WF1 shall provide a 1,500-gallon (5678-liter) capacity, with NSF/ANSI 42 & 53 certifications to reduce lead content in the drinking water by 99%. Optional Water Filter to be shipped loose for installation within Water Cooler unit.

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual BF11 and BF12 Series Bottle Filler (English pdf)
H2O to Go!® Deck Mount Bottler Filler for Barrier-Free Water Cooler Drinking Fountain [BF11 Pushbutton; BF12 Series Sensor Activated]03 MB
PDF icon
Submittals
PDF icon
Submittal BF12 Bottle Filler (English pdf)
H2O-To-Go!® Sensor Activated Bottle Filler for Barrier-Free Water Cooler0629 KB
PDF icon
Literature/Brochures
PDF icon
MGI Corporate Brochure (pdf)
Who we are, Our History, Morris Group International Today021 MB
PDF icon
Installation Instructions
PDF icon
Manual BF11 and BF12 Series Bottle Filler (español pdf)
H2O to Go!® Deck Mount Bottler Filler for Barrier-Free Water Cooler Drinking Fountain [BF11 Pushbutton; BF12 Series Sensor Activated]03 MB

Specifications

BrandMurdock Manufacturing, H2O-To-Go!®
MountWall Mount, On Deck of Water Cooler
MaterialStainless Steel
ComplianceNSF 61 Section 9-1997, U.S. Federal Public Lead Free Law 111-380, ADA Forward Reach, UPC Green - Water Efficiency (US & Canada)
Additional BenefitsContains Recycled Material, Recyclable

Models

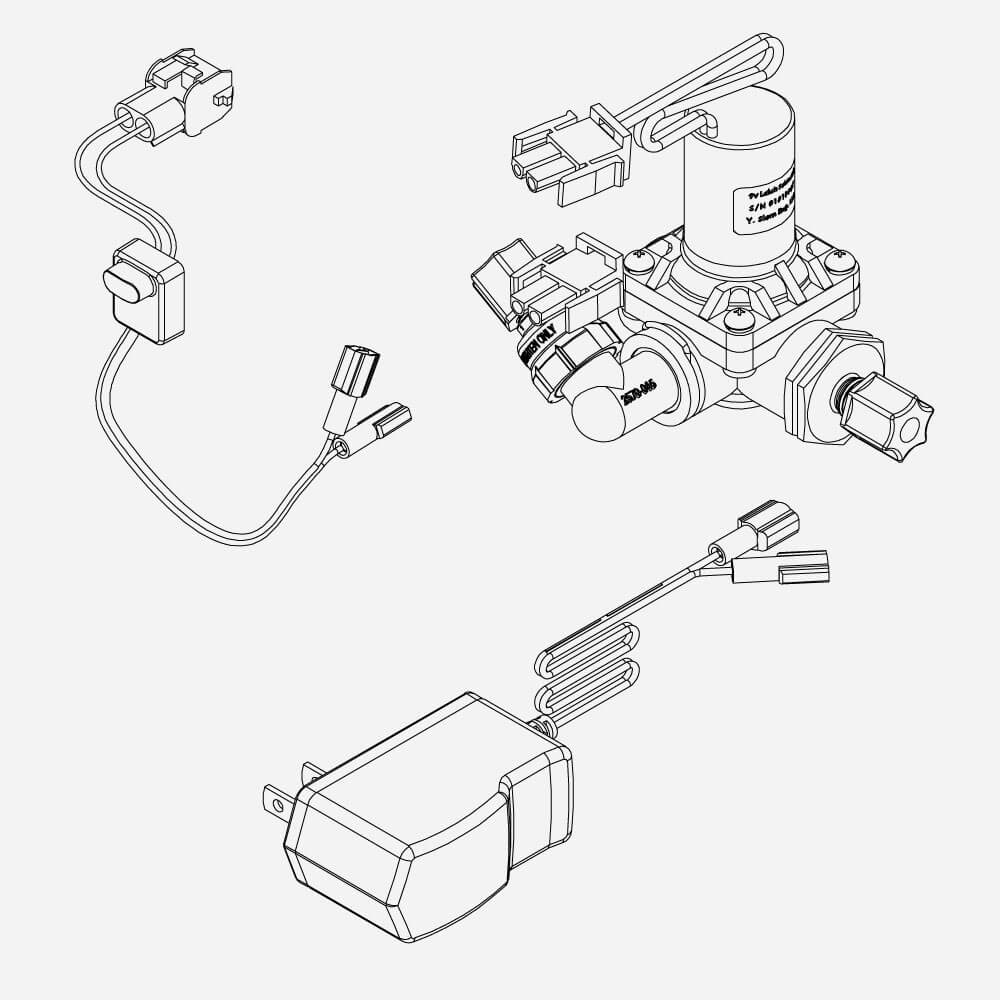

BF12 Preview BF12 sensor, solenoid, plug-in

BF12
Standard model with plug-in electrical

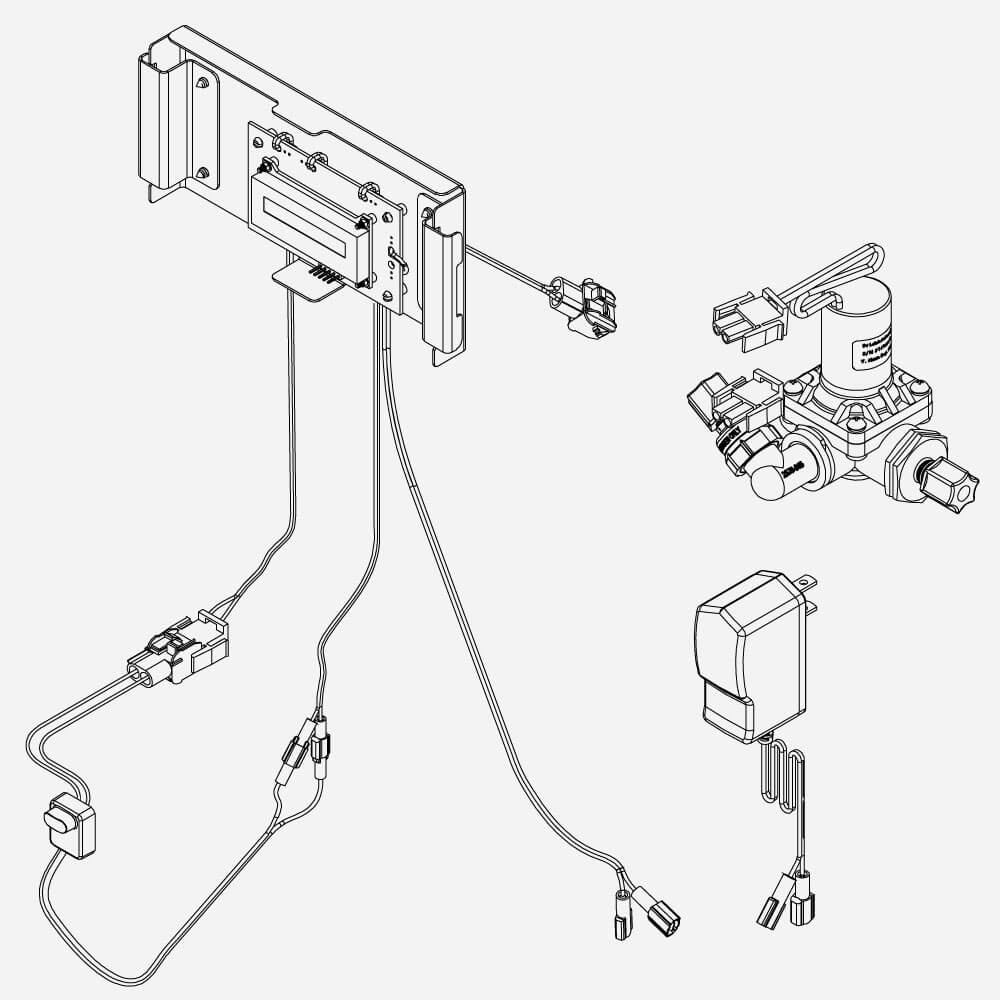

BF12-BCD image external BF12-BCD sensor, solenoid, display, plug-in

BF12-BCD
Display for Bottle Counter and Filter Status; plug-in electrical

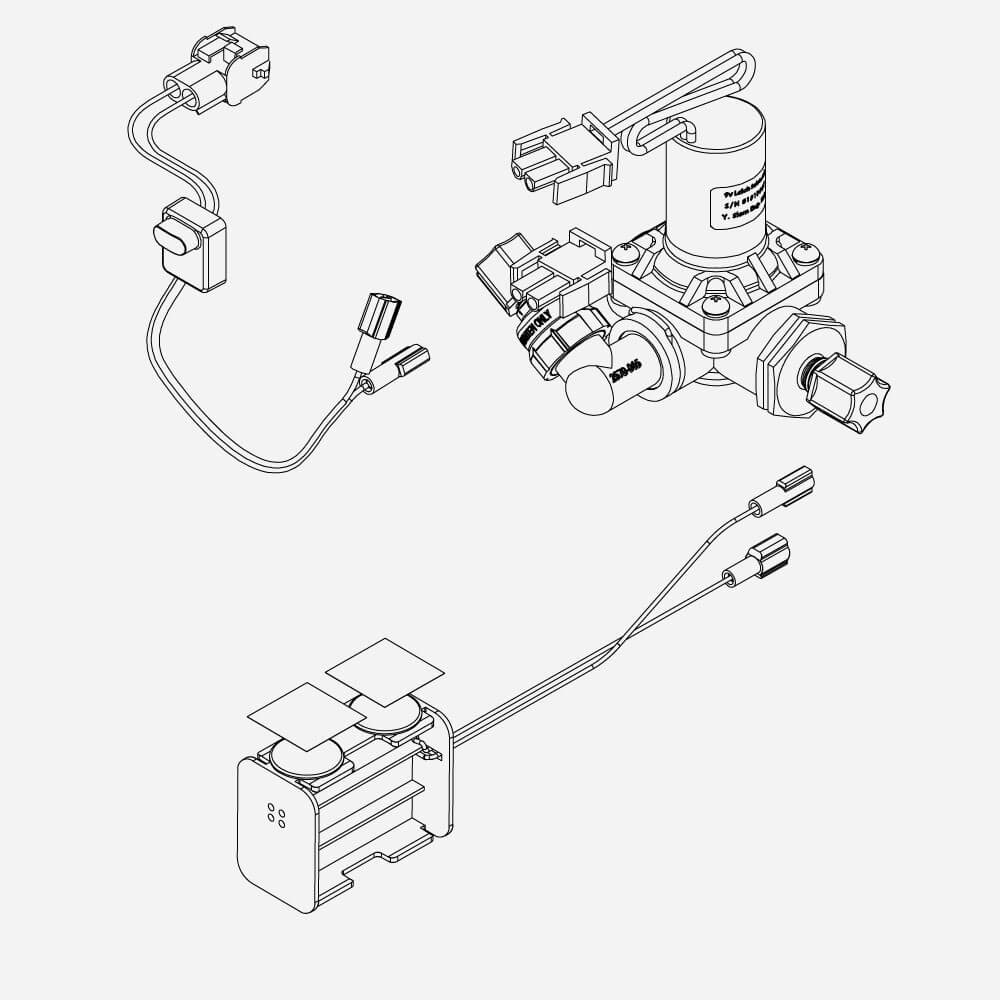

BF12-BAT image external BF12-BAT sensor, solenoid, battery-pack

BF12-BAT
Battery powered
