Stainless Steel Oval Bowl ADA Wall Mount Drinking Fountain

Find A Representative
Model A131-VR Series
Installation Instructions
Manual A131-VR and A421-VR Series Drinking Fountain (English pdf)
Submittal
Submittal A131-VR Series Drinking Fountain (English pdf)
Model A131-VR Series

Stainless Steel Oval Bowl ADA Wall Mount Drinking Fountain

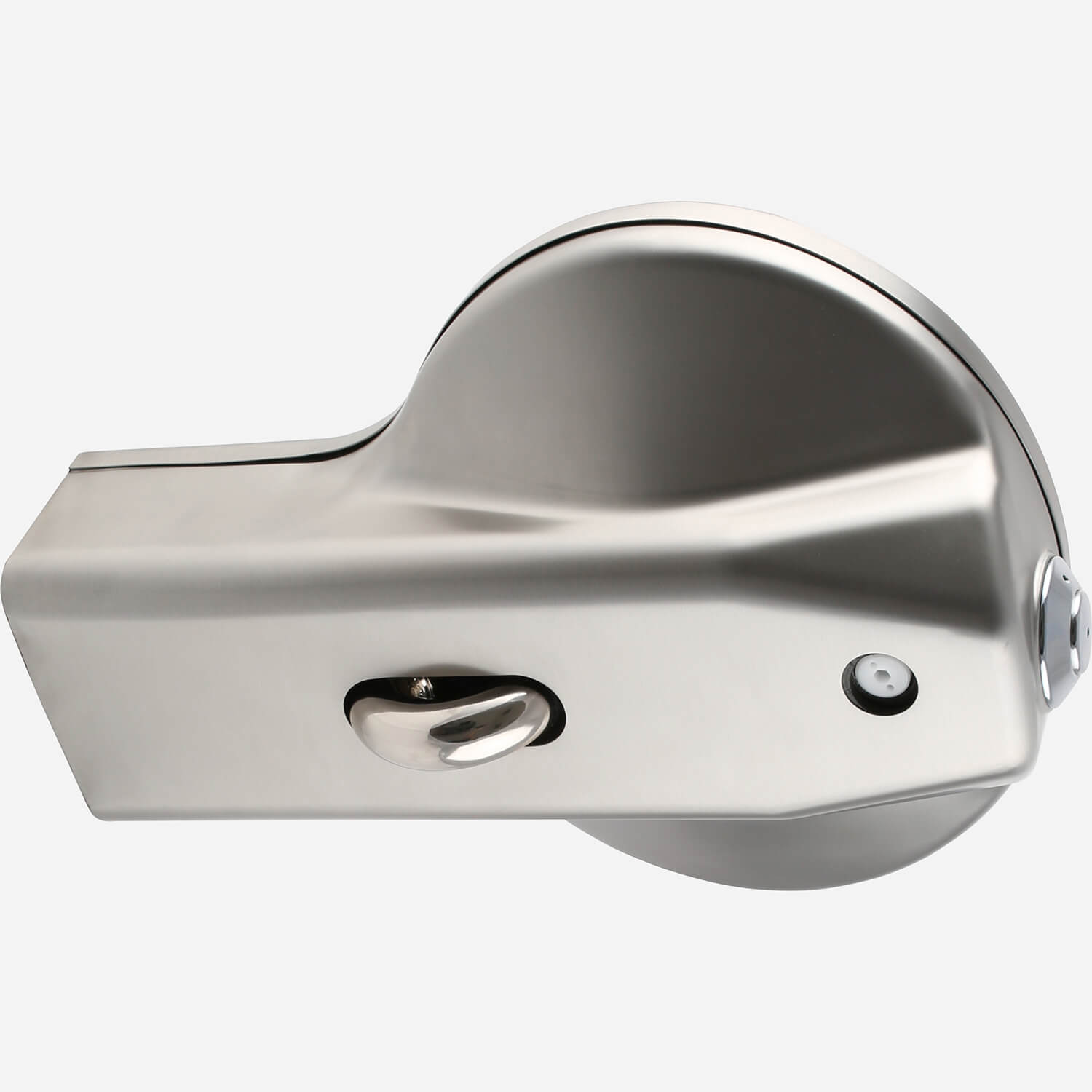

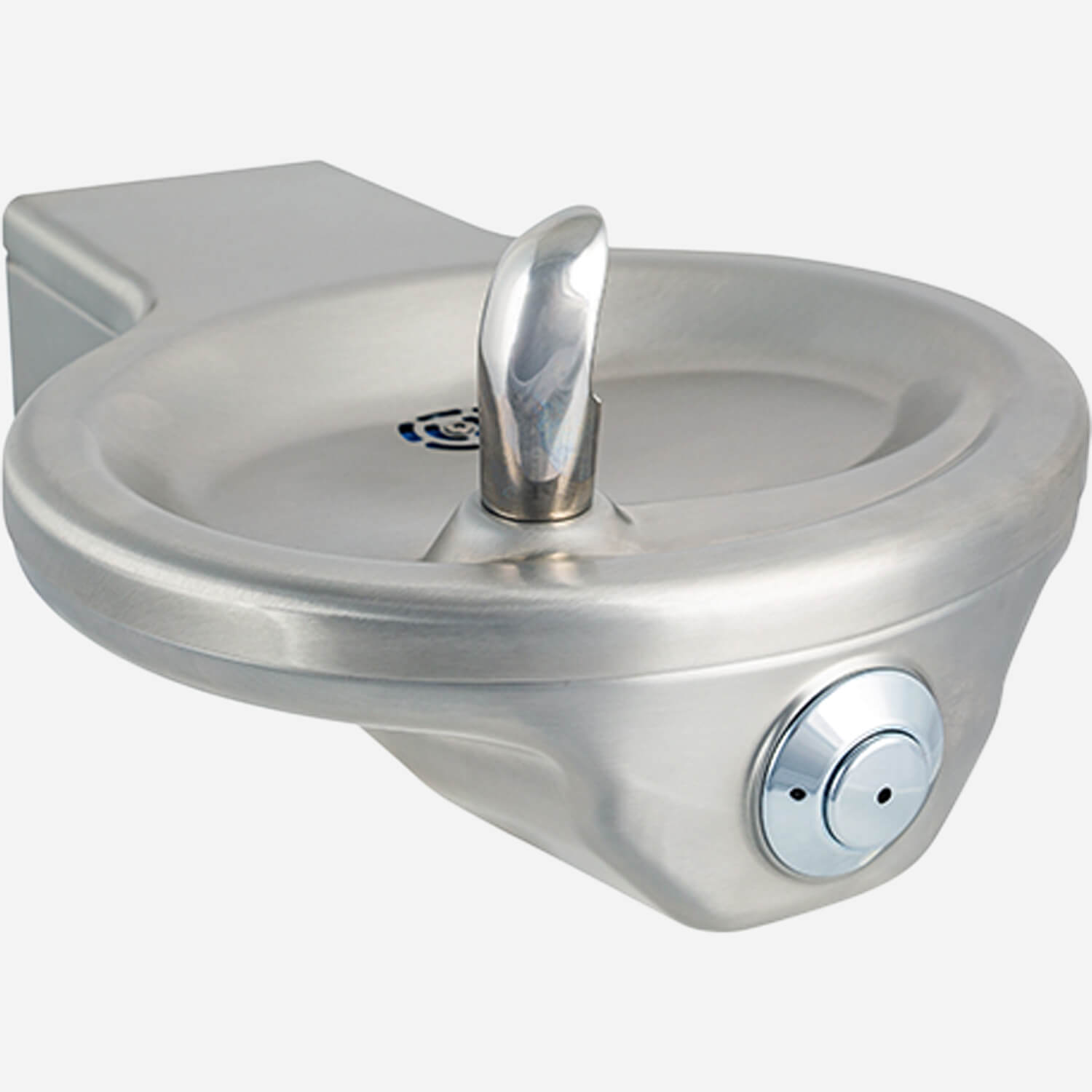

This wall-mounted single oval drinking fountain is constructed from 18 gauge, 304 stainless steel. It has a lead-free polished, stainless steel, anti-rotation, non-squirt bubbler, and integral P-trap. Child or Adult ADA-compliant when properly installed. This unit does not provide refrigerated water.

The patented pushbutton auto-stop feature seamlessly incorporates the circular heavy-duty vandal-resistant button for additional security while allowing easy access to the pushbutton for routine maintenance. Accessing the strainer filter under the basin by loosening the strainer plug engages an autostop, making it unnecessary to turn off the water at the angle stop. The filter can be easily rinsed with clean water. The stream height exiting the bubbler is also easily adjusted right from the front of the button. All this simple, routine maintenance can be done without the time-consuming disassembly of the unit.

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual A131-VR and A421-VR Series Drinking Fountain (English pdf)
Stainless Steel Oval Bowl Wall Mount Drinking Fountain [A131-VR Series ADA Barrier-Free; A421-VR Series Non-ADA Standard Unit]01 MB
PDF icon
Submittals
PDF icon
Submittal A131-VR Series Drinking Fountain (English pdf)
Stainless Steel Oval Bowl ADA Wall Mount Drinking Fountain0588 KB
PDF icon
Literature/Brochures
PDF icon
MGI Corporate Brochure (pdf)
Who we are, Our History, Morris Group International Today021 MB

Specifications

BrandMurdock Manufacturing
MountWall Mount
MaterialStainless Steel
ComplianceNSF 61 Section 9-1997, U.S. Federal Public Lead Free Law 111-380, ANSI A117.1, ADA Standing Person, ADA Child, UPC Green - Water Efficiency (US & Canada)
Additional BenefitsContains Recycled Material, Recyclable, Water Saving

Models

A131400S-VR
All-Stainless Steel; Lead-Free, Polished Stainless Steel Bubbler
A131400F-VR
All-Stainless Steel; Flexible Bubbler
A131400S-VR-HP
High Polish Stainless Steel; Lead-Free, Polished Stainless Steel Bubbler
A131400F-VR-HP
High Polish Stainless Steel; Flexible Bubbler
A131200S-VR
Bronze Finish; Lead-Free, Bronze Finish Stainless Steel Bubbler
A131200F-VR
Bronze Finish; Flexible Bubbler
A131300S-VR
High Polish Gold; Lead-Free, High Gold Polished Stainless Steel Bubbler
A131300F-VR
High Polish Gold; Flexible Bubbler

Popular Options/Accessories

BP2
Back Panel for Single Fountain
CSC
Concealed Support Carrier
FRA1
Freeze-resistant Valve
MF1
Mounting Frame for Single Fountain
SO
(Indoor) Sensor Activation

See submittal for more info
