Barrier-Free, Front Access Flush Panel Stainless Steel Security Shower
Acorn Engineering provides this tall single panel security shower used in a front-access application. The fixture is configured with front access for installation and maintenance, where a typical security servicing chase is not available. This accommodates barrier-free concerns. Various valve options are available.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Barrier-Free, Flush Panel Stainless Steel Security Shower - Front Access | 0 | 154 KB | ||
| | Barrier-Free, Flush Panel Stainless Steel Security Shower - Front Access | 0 | 587 KB | ||
| | Barrier-Free, Flush Panel Stainless Steel Security Shower - Front Access | 0 | 583 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 21 MB |
Specifications
| Brand | Acorn Engineering Co., Penal-Ware |
| Mount | Front Mount |
| Material | Stainless Steel |
| Compliance | NSF61, Section 9, 1997, U.S. Federal Public Lead Free Law 111-380, ADA, UFAS, ANSI |
Models

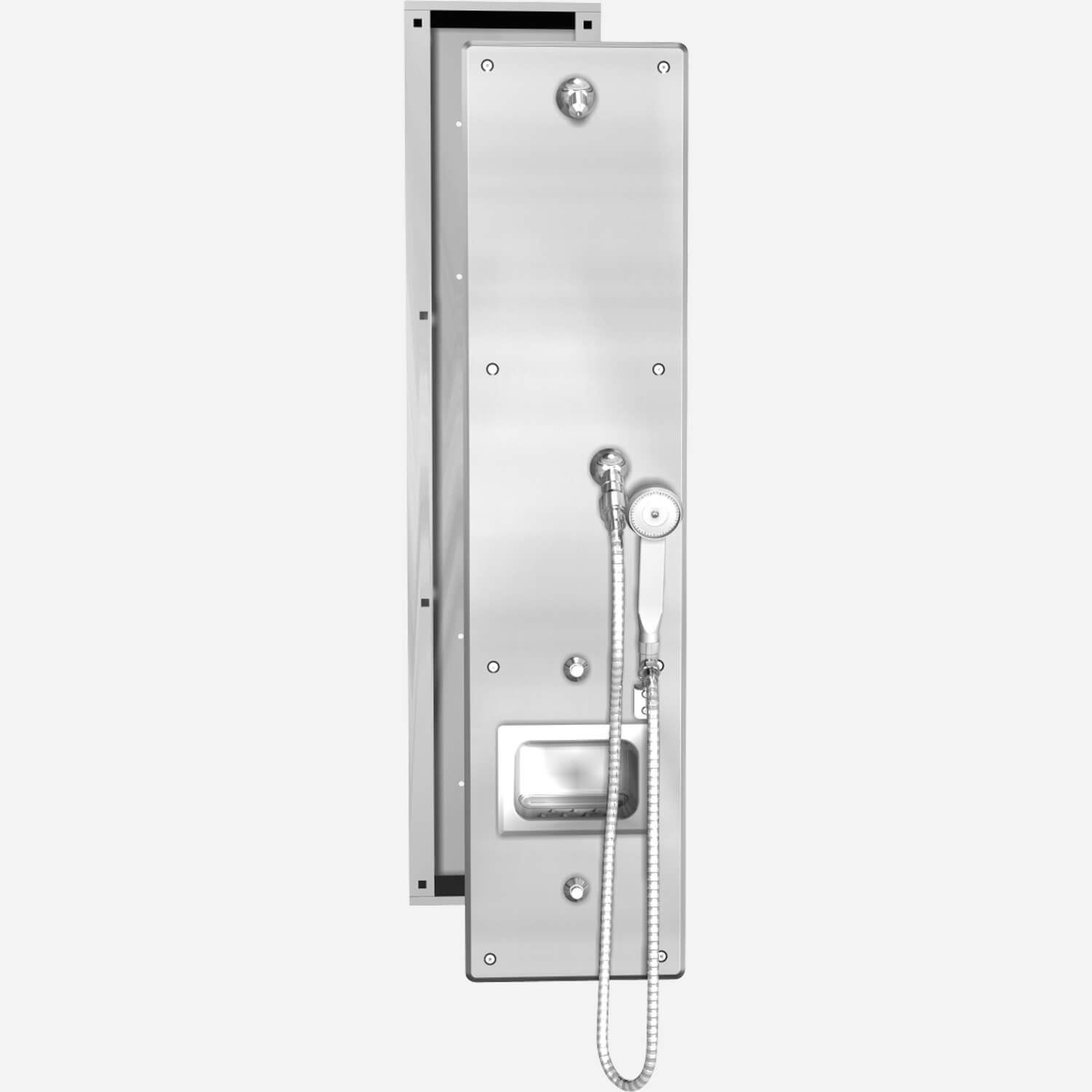

The showerhead and valves are mounted on a tall single panel mounting plate. The mounting plate is designed to be installed on the front of the wall. The fixture is configured with front access for installation and maintenance, where a typical security servicing chase is not available. A lower fixed showerhead or handheld shower is provided for the disabled user.

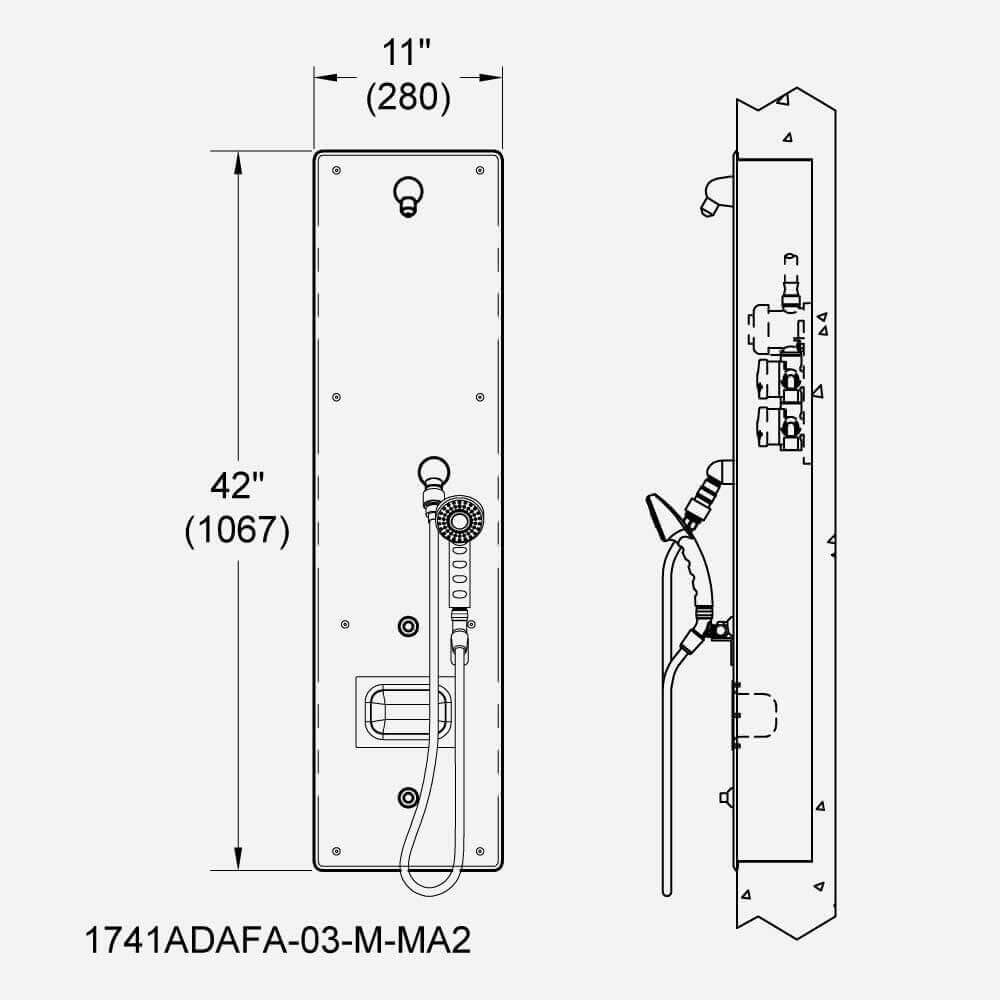

1741ADAFA-03-M Single Temp Pneumatic Push Button Air-Control® Valve

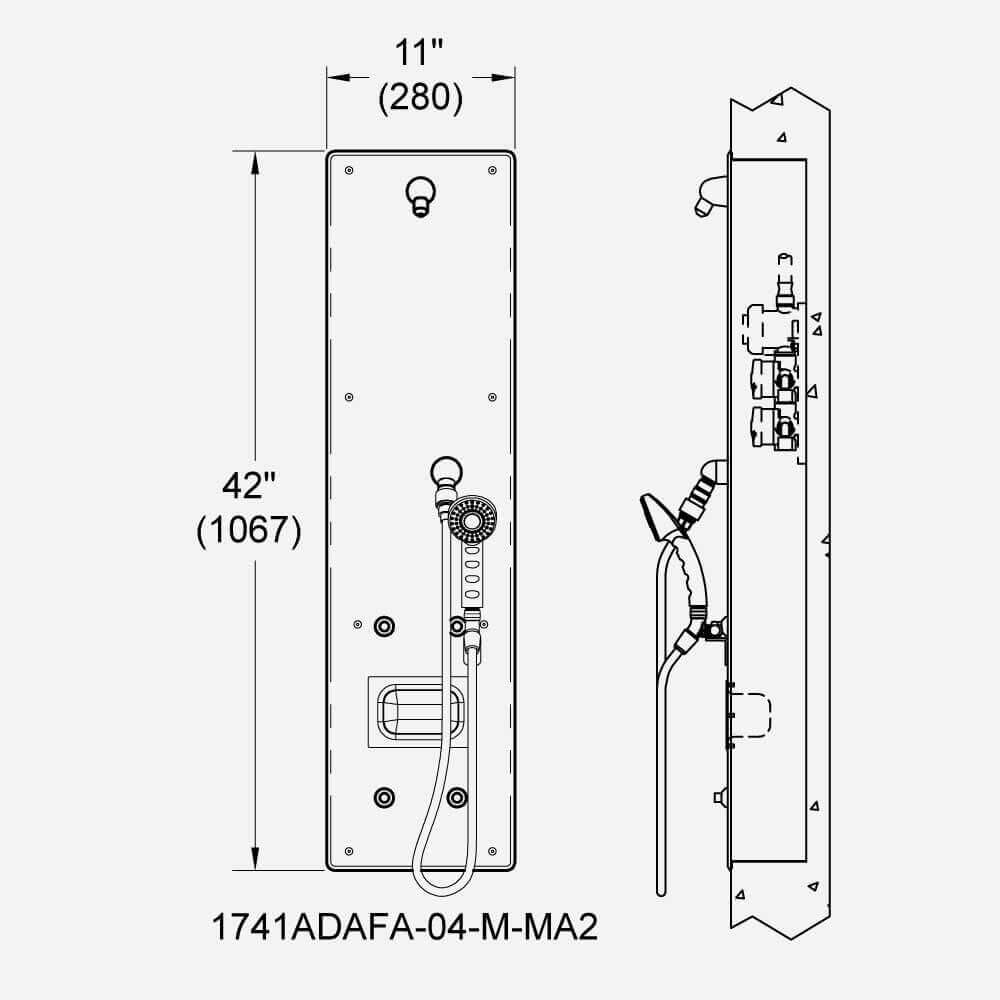

1741ADAFA-04-M Hot & Cold Pneumatic Push Button Air-Control® Valve

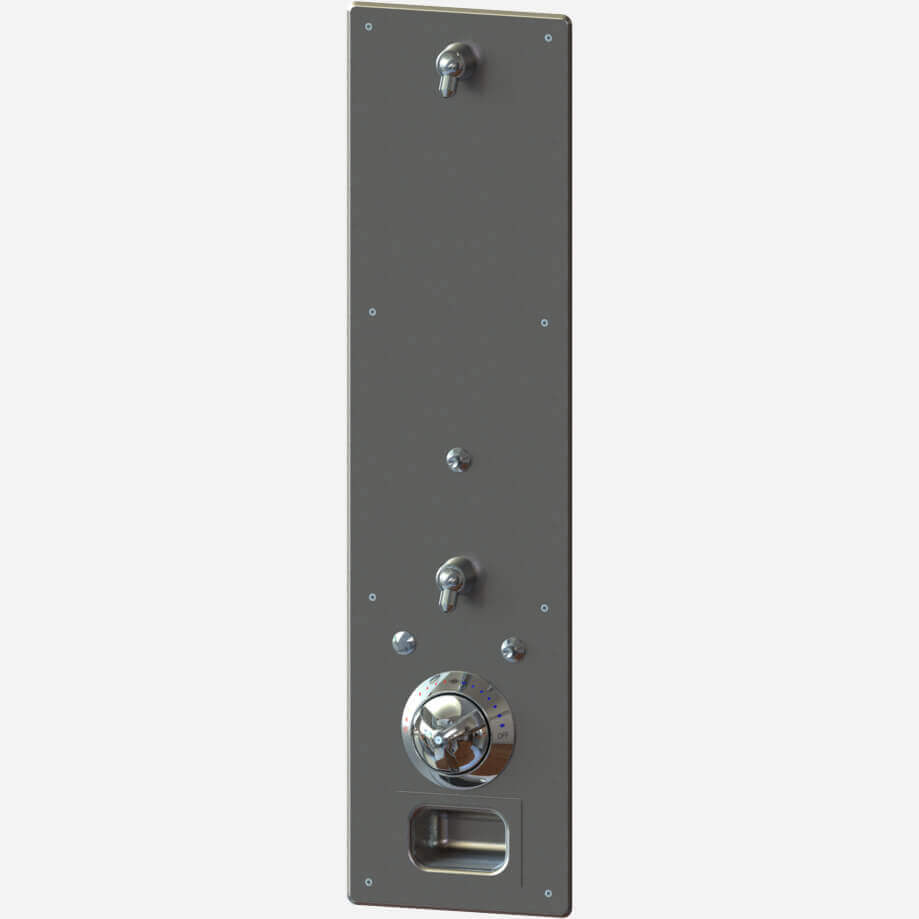

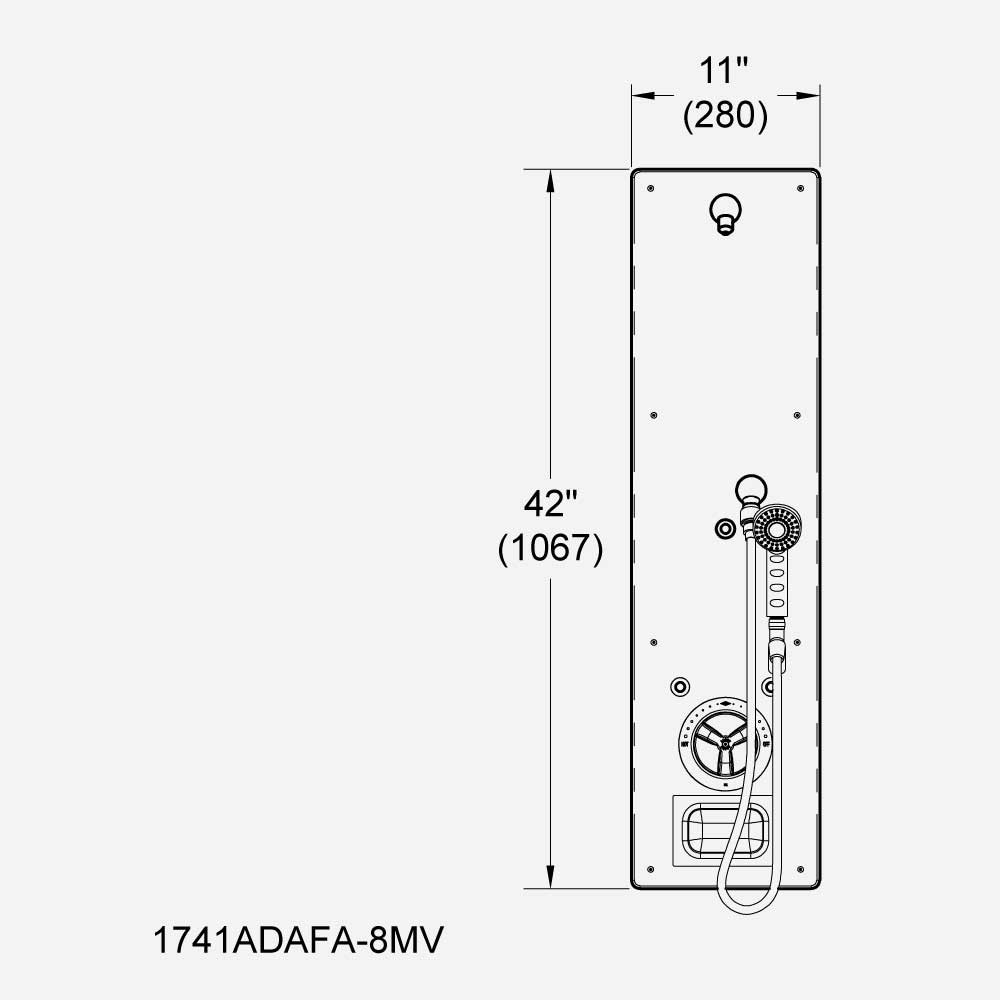

1741ADAFA-8MV ASSE 1016 compliant Temperature-Pressure Balancing Mixing Valve; Metering valve in the riser
ELECTRONIC VALVES
The following electronic valve options are available: Master-Trol® -EVS1, -EVS2, -EVSP1, -EVSP2, Master-Trol® Plus -MTP1, -MTP2, -MTPP1, -MTPP2, Time-Trol® -MVC1, -MVC2, Piezo -PPZ1, -PPZ2
