Front Access Single-Flush Panel Stainless Steel Security Shower
Front Access Single-Flush Panel Stainless Steel Security Shower
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Flush Panel Stainless Steel Security Shower - Front Access | 120 KB | ||
| | Flush Panel Stainless Steel Security Shower - Front Access | 555 KB | ||
| | Flush Panel Stainless Steel Security Shower - Front Access | 552 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB |
Specifications
| Brand | Acorn Engineering Co., Penal-Ware |
| Mount | Front Mount |
| Material | Stainless Steel |
| Compliance | NSF61, Section 9, 1997, U.S. Federal Public Lead Free Law 111-380 |
Models
The showerhead and valves are mounted on a tall single panel mounting plate. The mounting plate is designed to be installed on the front of the wall. The fixture is configured with front access for installation and maintenance, where a typical security servicing chase is not available.

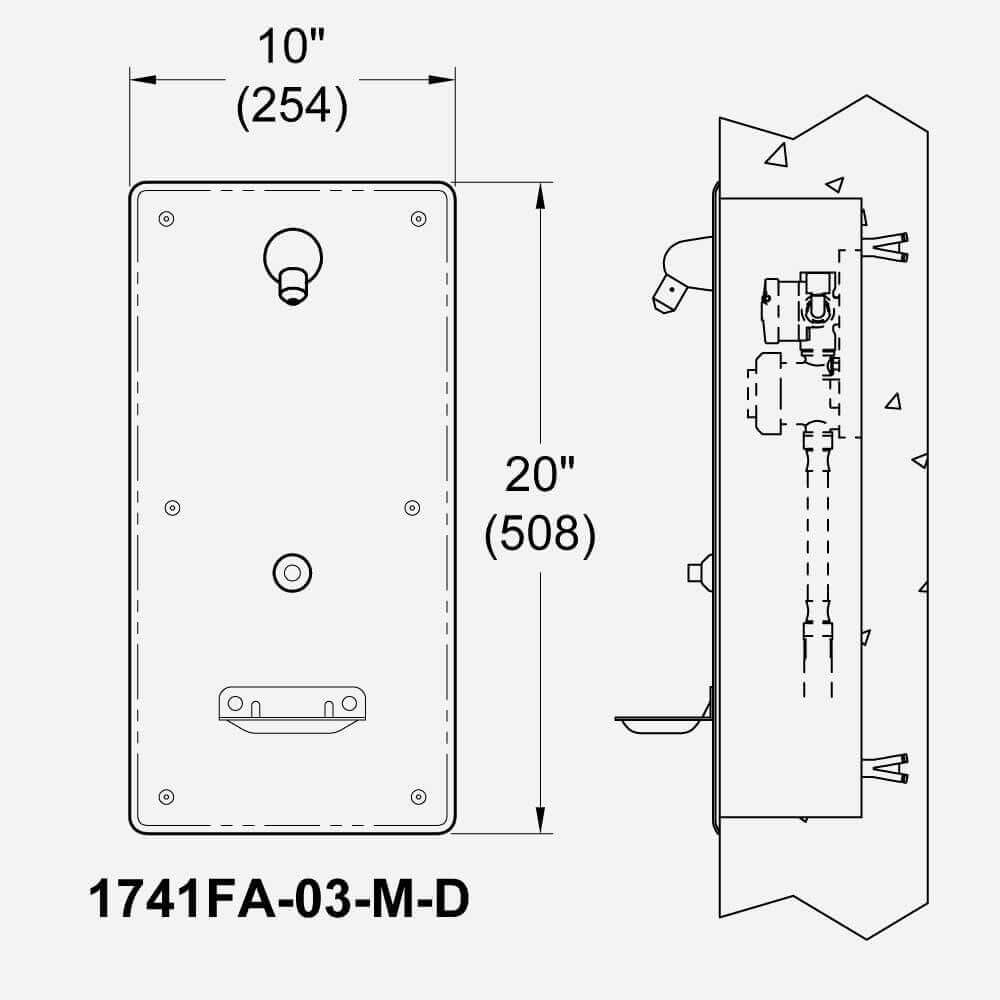

1741FA-03-M-D Single Temp Pneumatic Push Button Air-Control® Valve; cantilever mount soap dish

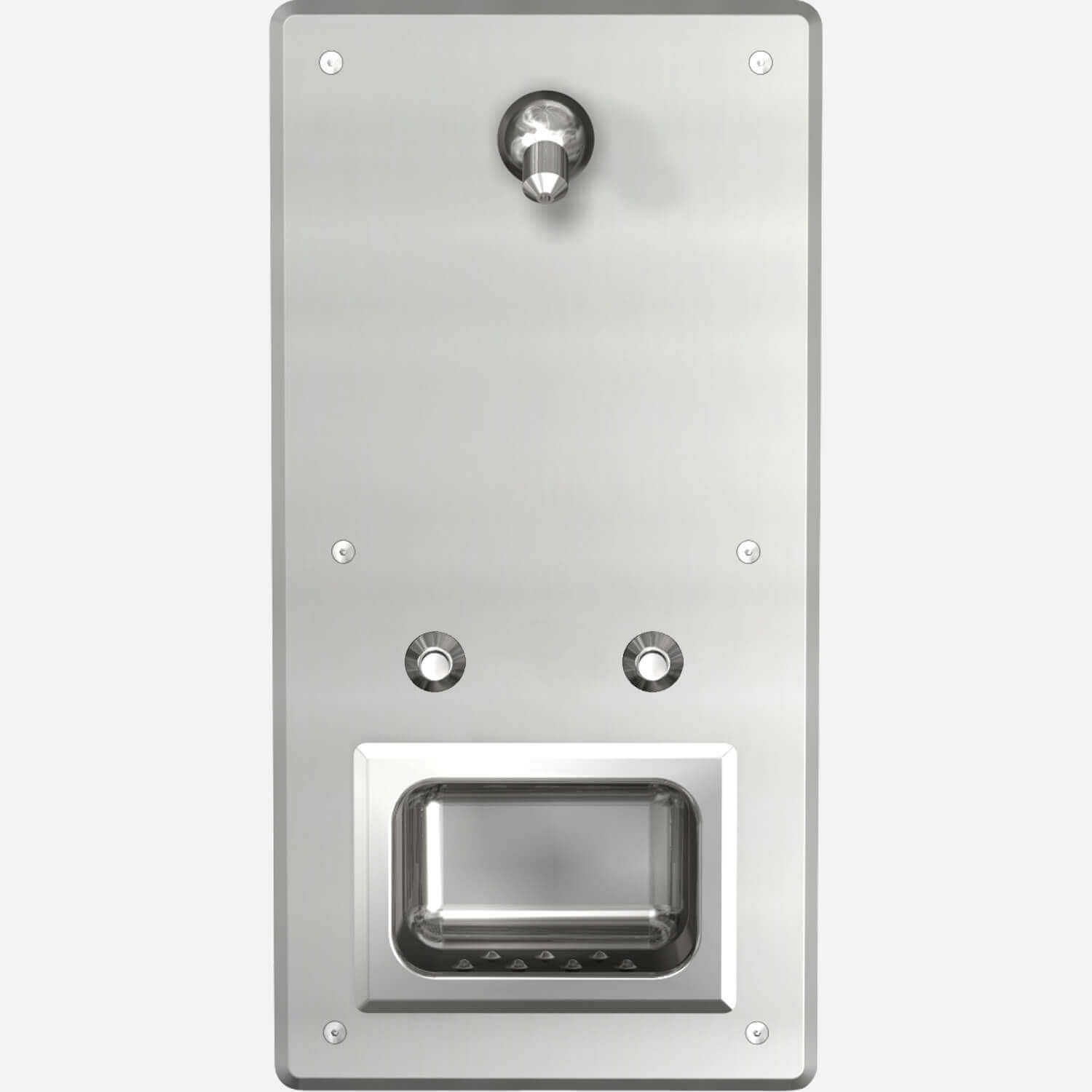

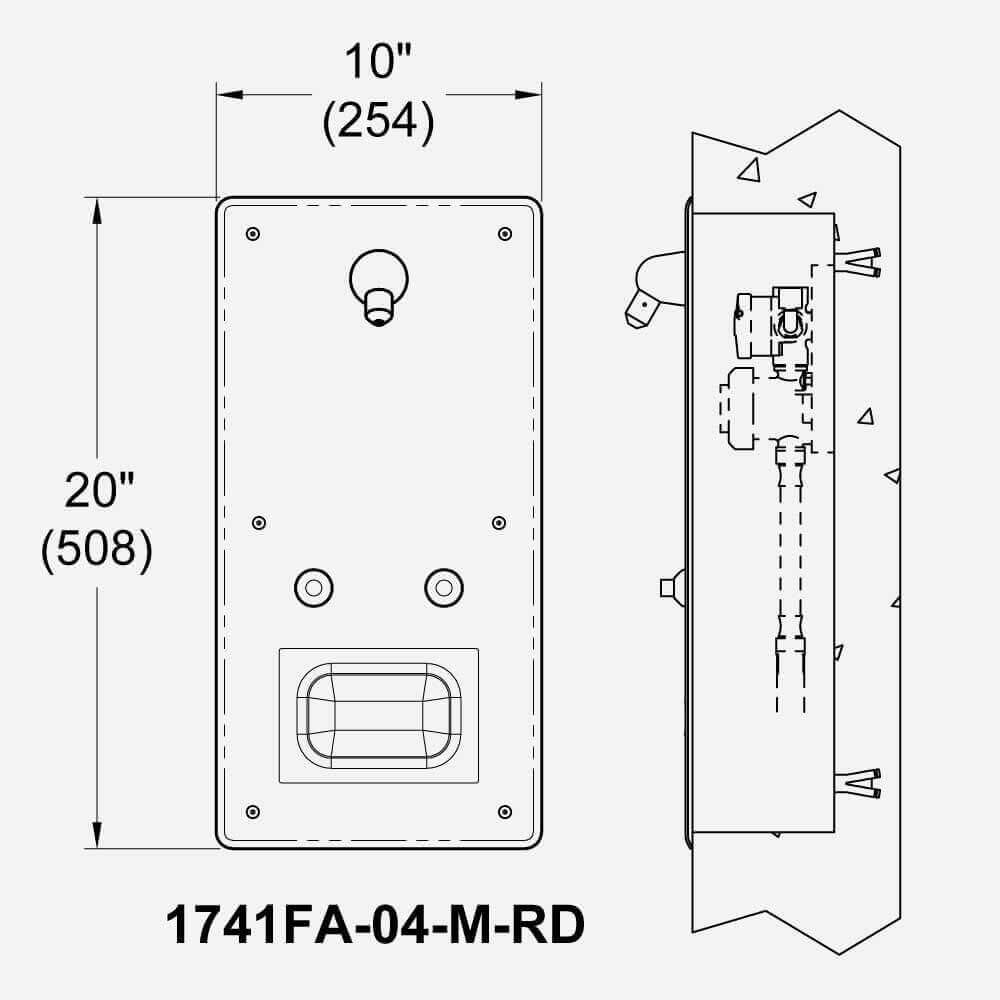

1741FA-04-M-RD Hot & Cold Pneumatic Push Button Air-Control® Valve; recessed soap dish

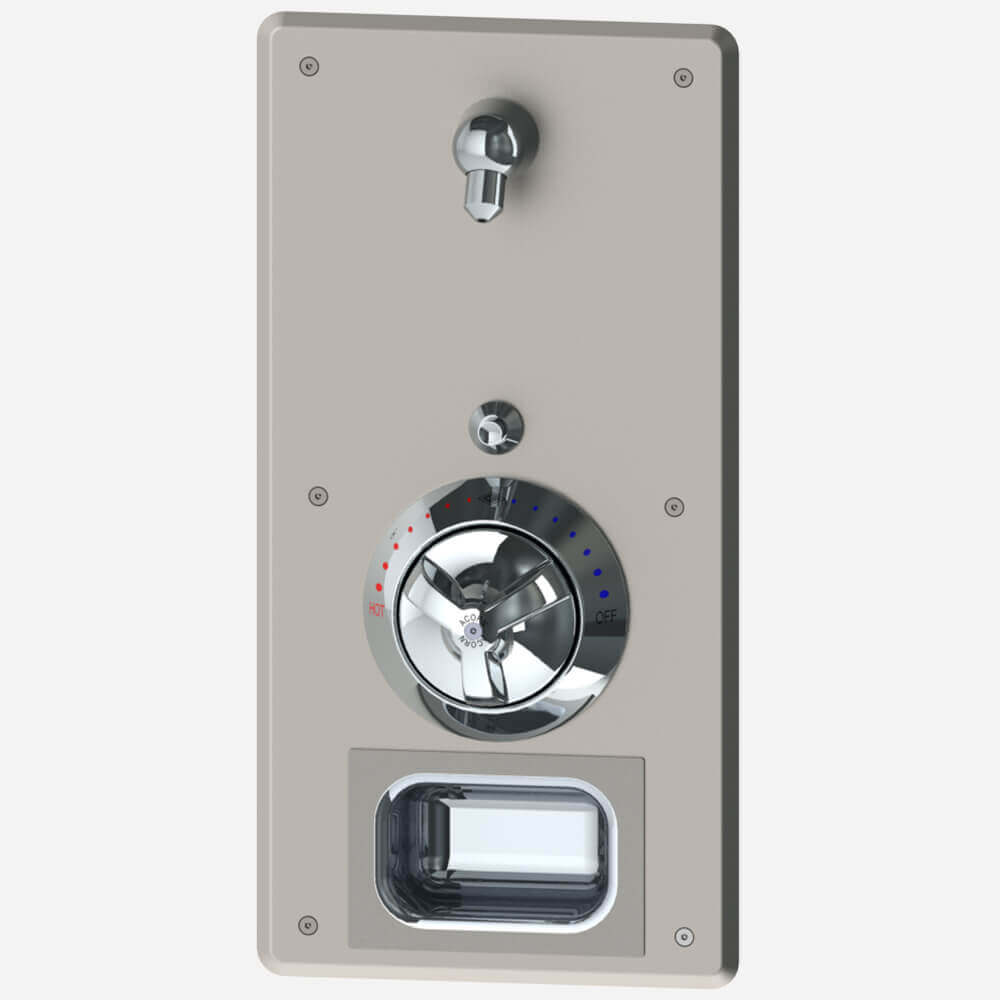

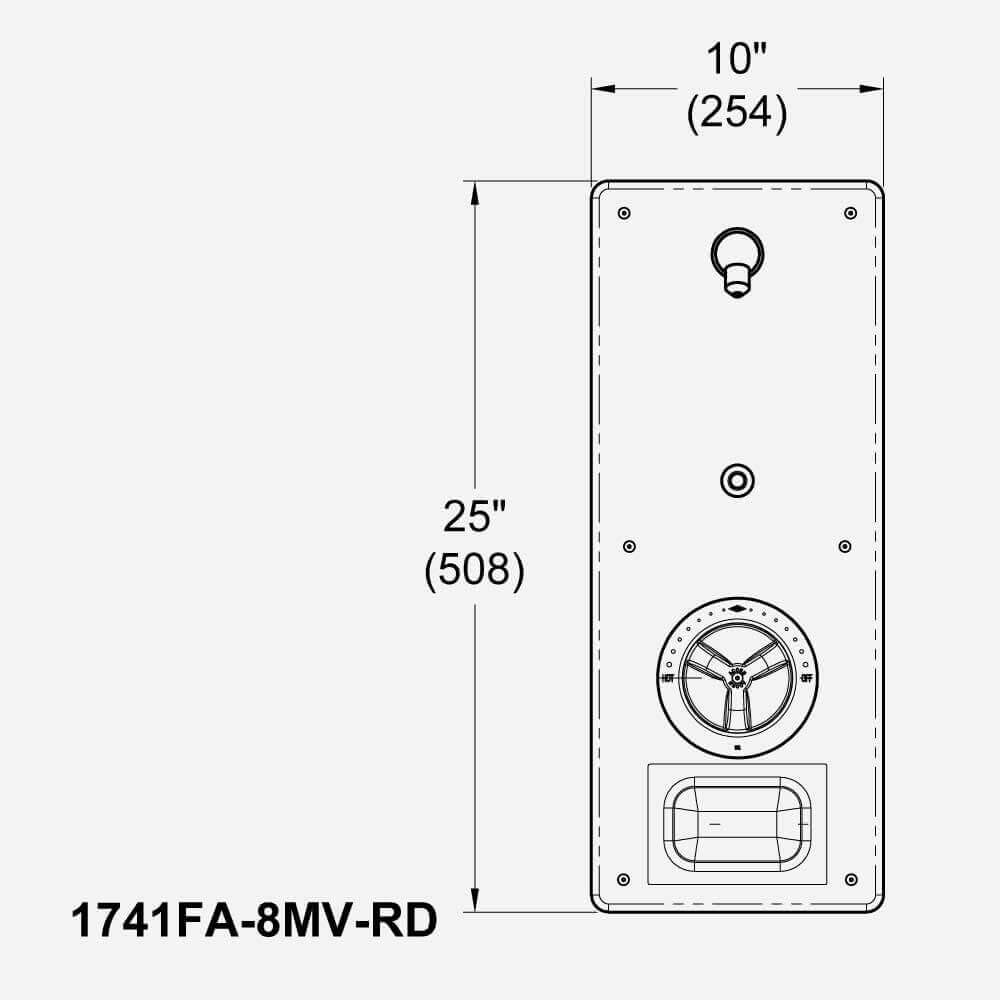

1741FA-8MV-RD ASSE 1016 compliant Temperature-Pressure Balancing Mixing Valve; Metering valve in the riser; recessed soap dish
ELECTRONIC VALVES
The following electronic valve options are available: Master-Trol® -EVS1, -EVS2, -EVSP1, -EVSP2 Master-Trol® Plus -MTP1, -MTPP1 Time-Trol® -MVC1, -MVC2 Piezo -PPZ1, -PPZ2
