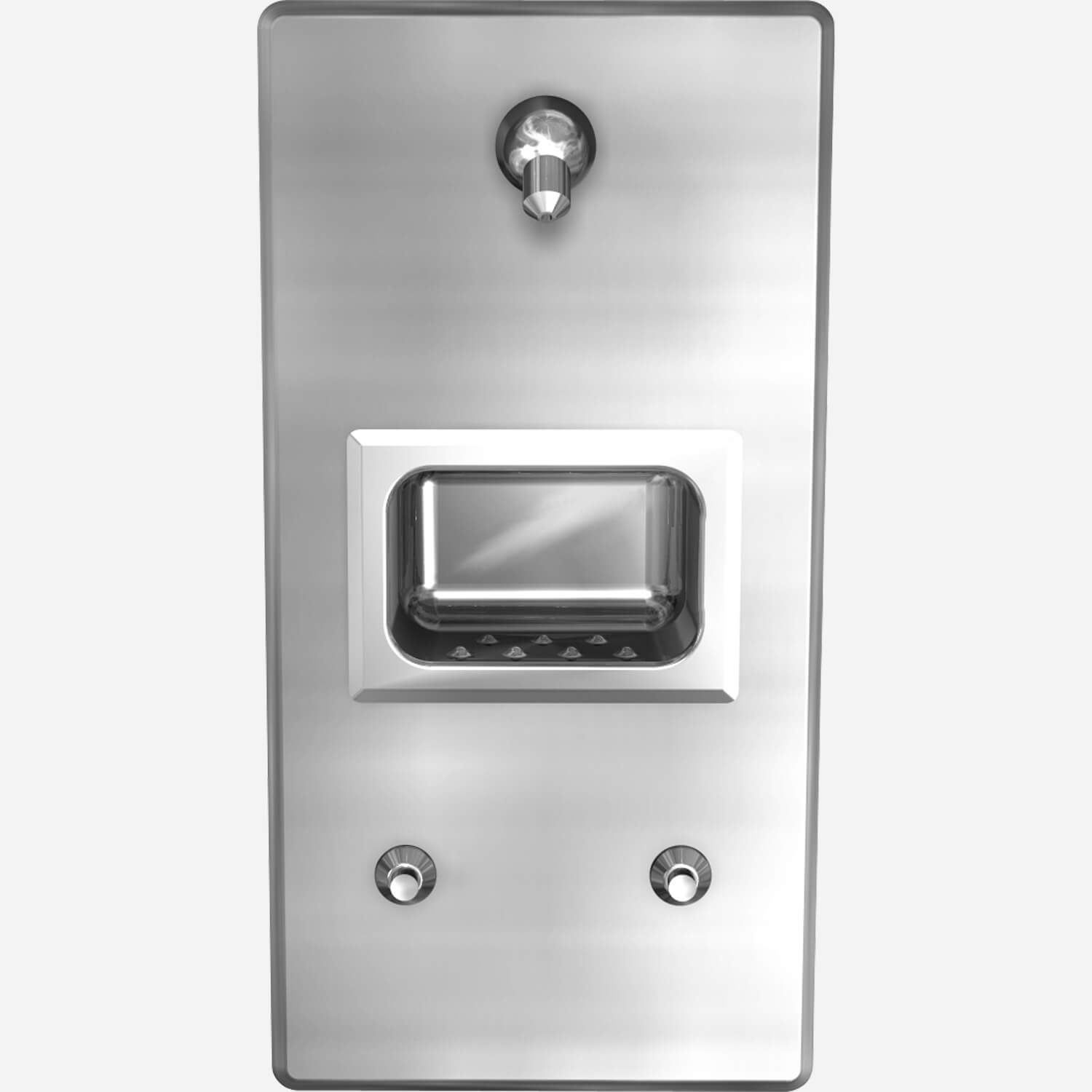

Single-Flush Panel Stainless Steel Security Shower for Rear Mount (Chase) Application
Single-Flush Panel Stainless Steel Security Shower for Rear Mount (Chase) Application
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Flush Panel Stainless Security Shower - Rear (Chase) Mount - with Single Temp Air-Control Pneumatic Valve | 256 KB | ||
| | Flush Panel Stainless Steel Security Shower - Rear (Chase) Mount | 506 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | Flush Panel Stainless Security Shower - Rear (Chase) Mount - with Single Temp Time-Trol Valve | 558 KB | ||
| | Flush Panel Stainless Steel Security Shower - Rear (Chase) Mount with Hot & Cold Time-Trol Valve | 568 KB | ||
| | Flush Panel Stainless Steel Security Shower - Rear (Chase) Mount with Hot & Cold Air-Control Pneumatic Valve | 234 KB |
Specifications
| Brand | Acorn Engineering Co., Penal-Ware |
| Mount | Rear Mount (Chase) |
| Material | Stainless Steel |
| Compliance | NSF 61 Section 9-1997 |
| Additional Benefits | High Vandal Resistance |
Models
The showerhead and valves are mounted on a tall single panel mounting plate. The mounting plate is designed to be installed in a rear (chase) mount application.

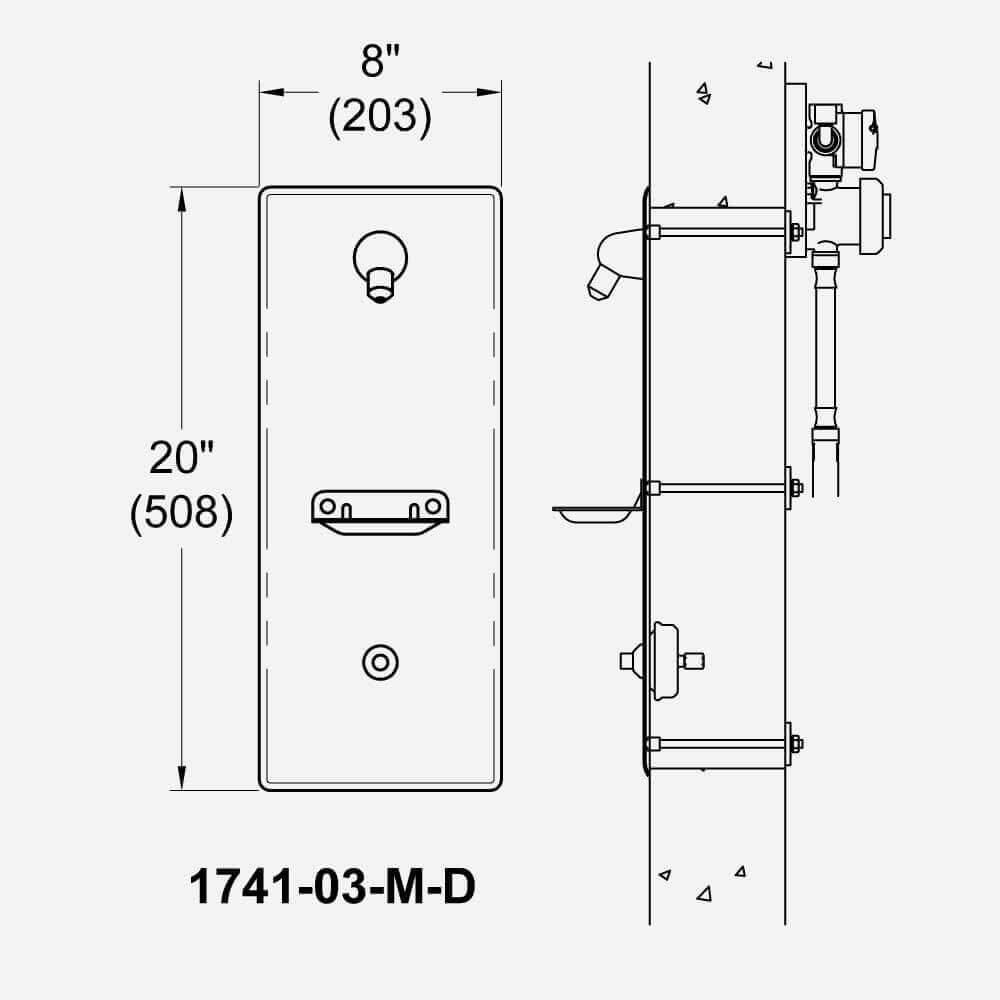

1741-03-M-D Single Temp Pneumatic Push Button Air-Control® Valve; cantilever mount soap dish

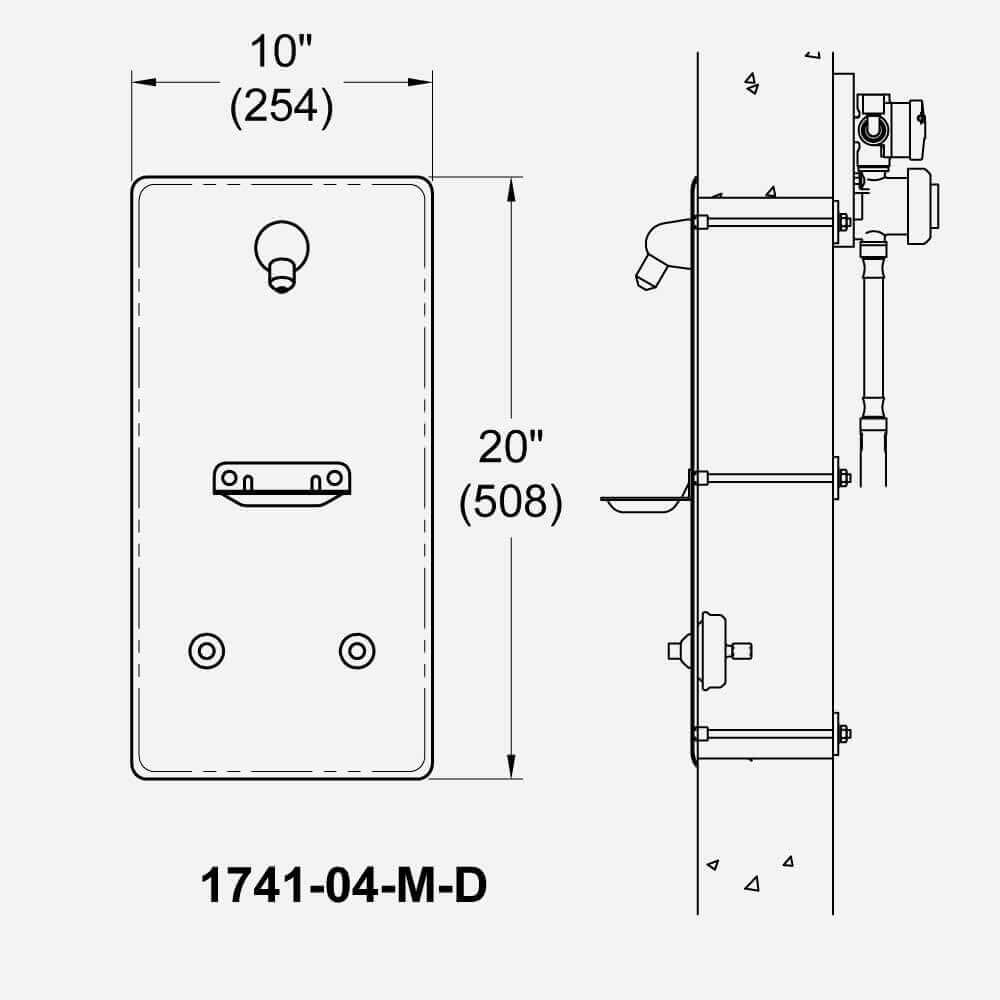

1741-04-M-D Hot & Cold Pneumatic Push Button Air-Control® Valve; cantilever mount soap dish

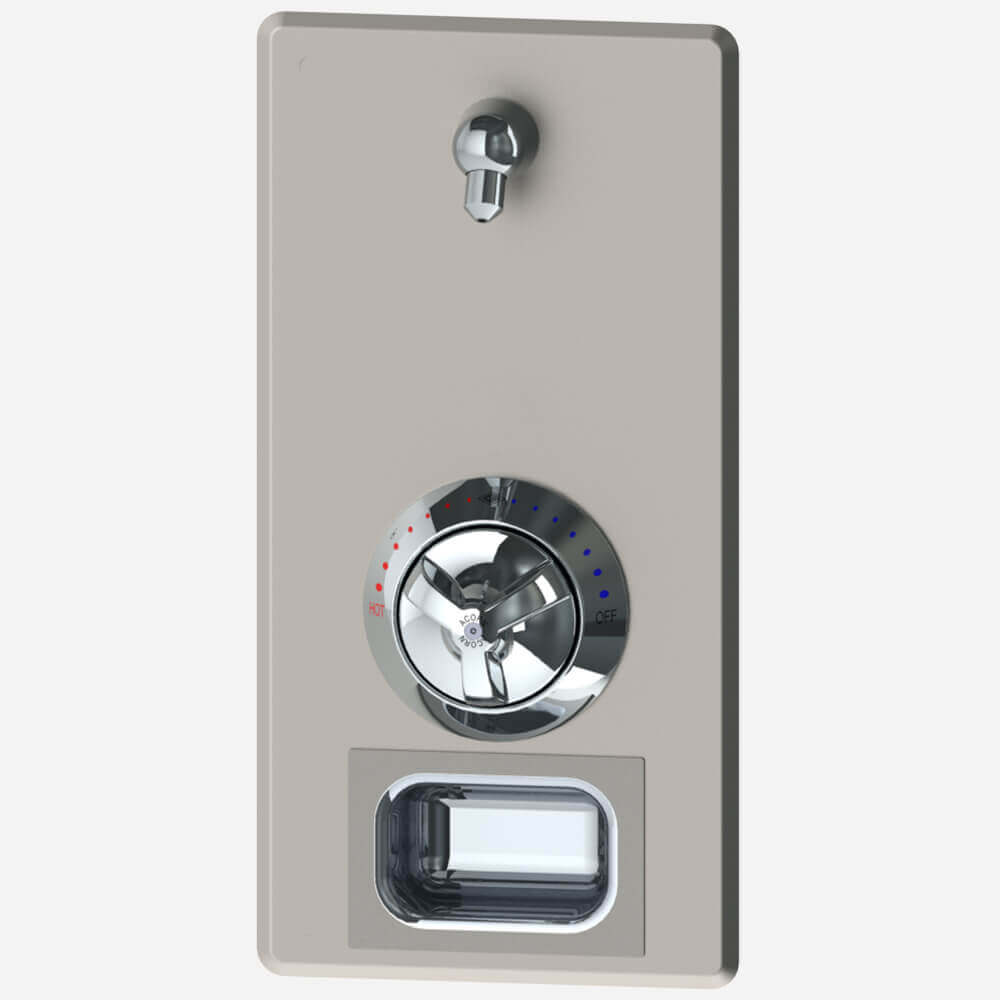

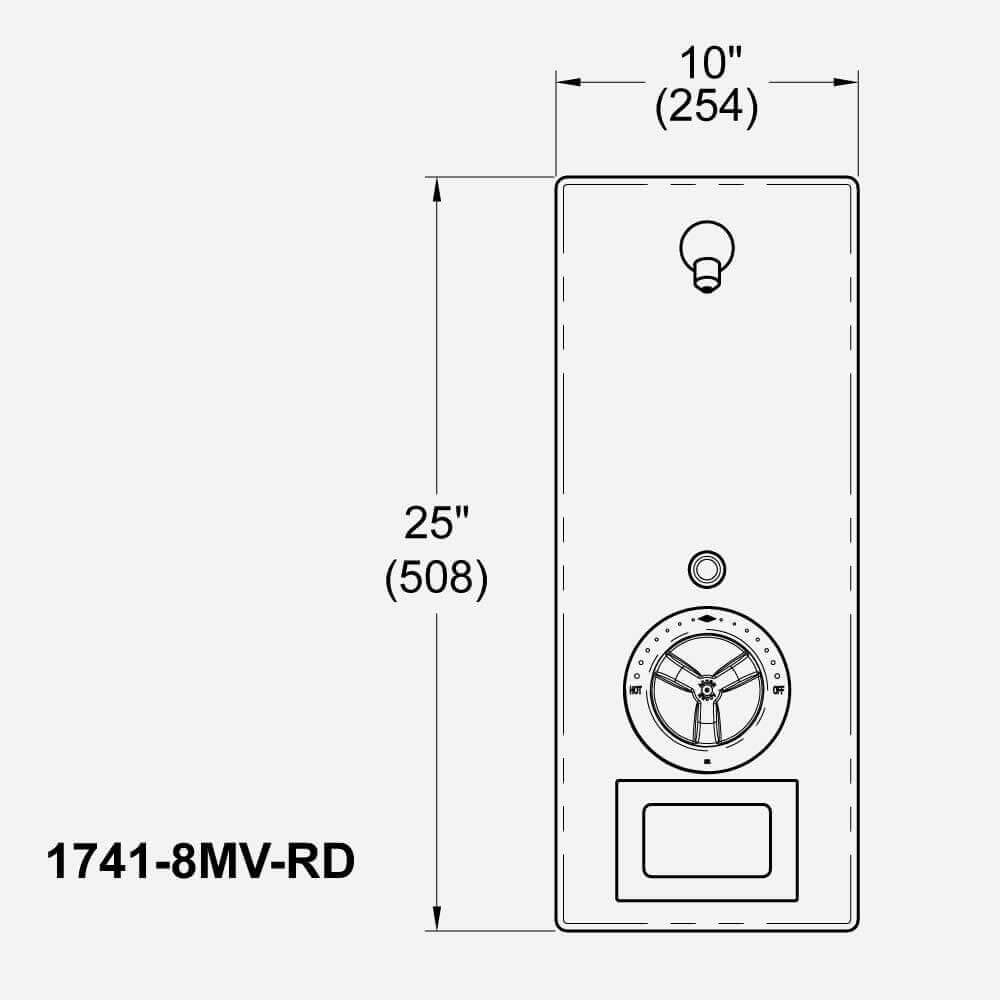

1741-8MV-RD ASSE 1016 compliant Temperature-Pressure Balancing Mixing Valve; Metering valve in the riser; recessed soap dish
ELECTRONIC VALVES
The following electronic valve options are available: Master-Trol® -EVS1, -EVS2, -EVSP1, -EVSP2, Master-Trol® Plus -MTP1, -MTP2, -MTPP1, -MTPP2, Time-Trol® -MVC1, -MVC2, Piezo -PPZ1, -PPZ2
