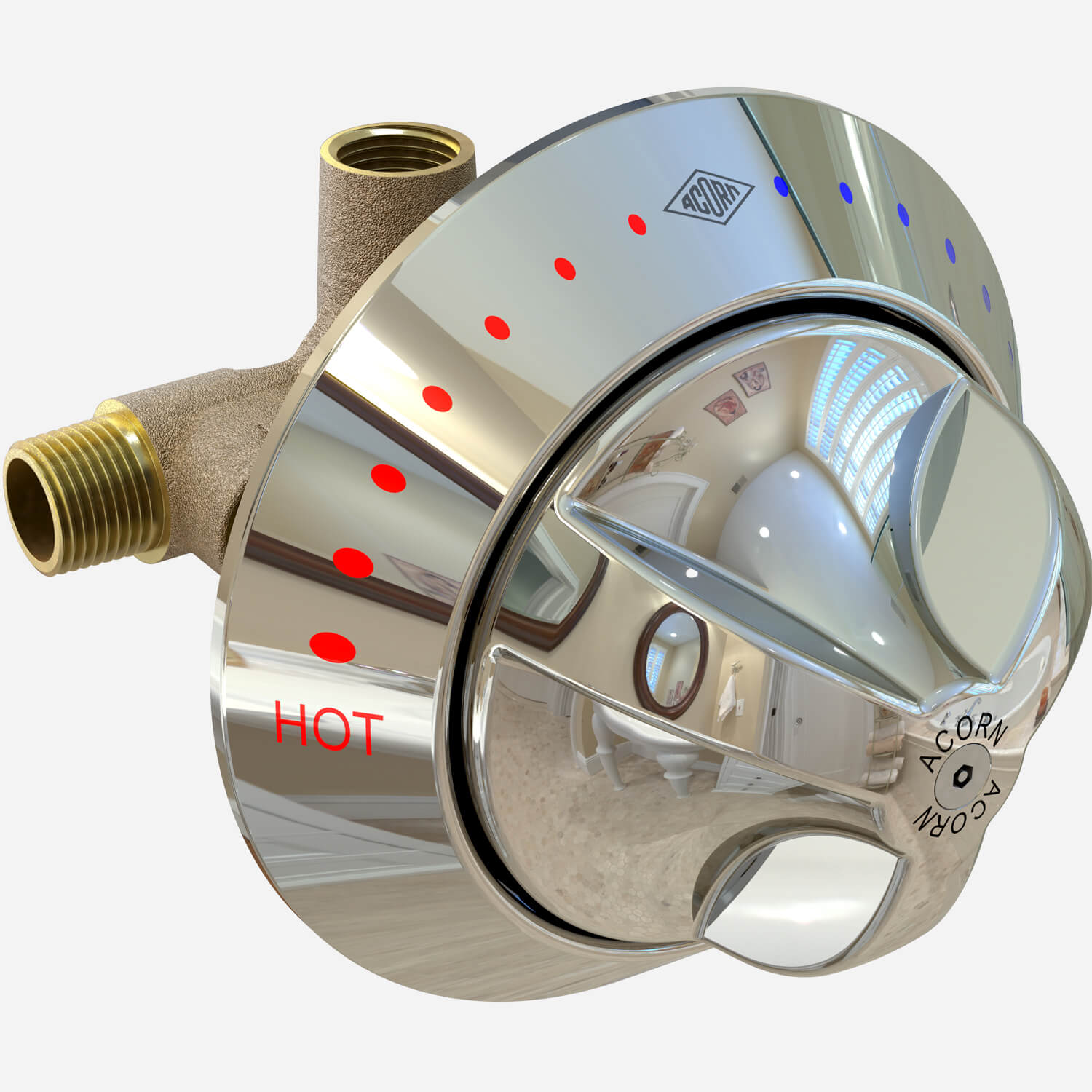

Model SV16 Series
Temperature/Pressure Balancing Mixing Valve for Individual Showers
SV16 Shower valve shall meet performance requirements of ASSE 1016-2011, Type T/P, compensating for ?50% fluctuation in supply line pressure and compensate for increases in hot water supply temperature. Valve shall operate with a non-rising stem and have ceramic shutoffs for long term drip free reliability. Cartridge shall be self-contained designed for easy maintenance and repair. Valve shall be a cast brass body with a capacity of 4 gpm (15 lpm) at 45 psi (310 kpa) differential. Valve shall include a field adjustable limit stop, factory set at 110? F (43? C) and capable of supplying mixed water temperature within 10? F ( 5.5? C) of hot water supply temperature. Valve shall always open through cold water to maximize the safety of the bather. Valve shall be Acorn model SV16.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Manual (Installation and Parts) for SV16 ASSE 1016 (Rev. 2011) Certified Temperature/Pressure (T/P) compensating Shower Valve | 0 | 2 MB | ||
| | ASSE 1016 Compliant Shower Mixing Valve | 0 | 383 KB | ||

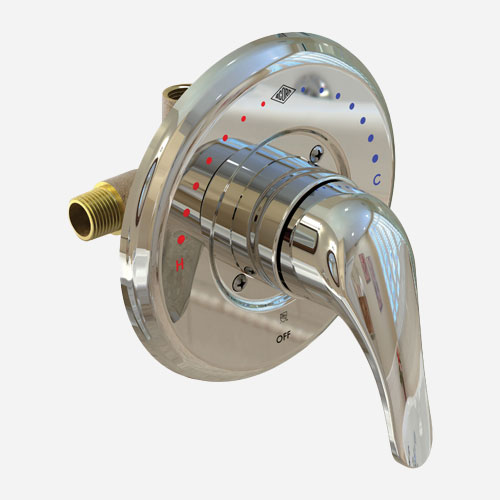

| | ASSE 1016 Compliant Shower T/P Mixing Valve [SV16 | Tri-Lever Ligature-Resistant Handle; SV16-LVR | Single Lever Handle] | 0 | 3 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 21 MB | ||
| | ASSE 1016 Compliant Shower T/P Mixing Valve [SV16 | Tri-Lever Ligature-Resistant Handle; SV16-LVR | Single Lever Handle] Spanish Translation 7802-116-000 Fecha: 10/07/14 | 0 | 3 MB |
Specifications
| Brand | Acorn Controls |
| Mount | Flush Mount |
| Material | Brass Body, Chrome Plated Metal Trim, Corrosion Resistant Internal Components |
| Compliance | ASSE 1016-2011, U.S. Federal Public Lead Free Law 111-380, ADA |
| Additional Benefits | Ligature Resistant |
