Thermostatic Mixing Valve for Acorn Safety

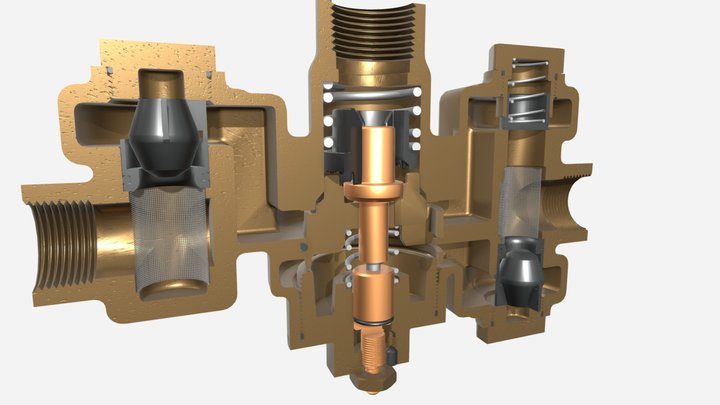

Emergency Fixture Thermostatic Mixing Valve shall be independent lab certified to ASSE 1071 and CSA standards. Valve shall have an on demand internal cold water bypass of at least 60% of the normal flow rate. Valve body shall be lead-free brass with corrosion resistant internal components. Checks and screen must be integral. The sensor will be an advance paraffin actuator with a temperature range of 60° to 95° F (16° to 35° C), factory set to 85° F (29° C) and adjustable by the safety officer. A locknut will prevent unauthorized or accidental set point changes. Shut-offs, if shown in the manufacturer's part number at the end of this specification, must be lockable to help prevent unauthorized or accidental closing in accordance with ANSI Z358 and ASSE 1071 shall be a reliable ball valve design.
