Model CM Series
Instant-Flow® C-Micro Water Heater with 0.75 LPM Activation Flow Rate

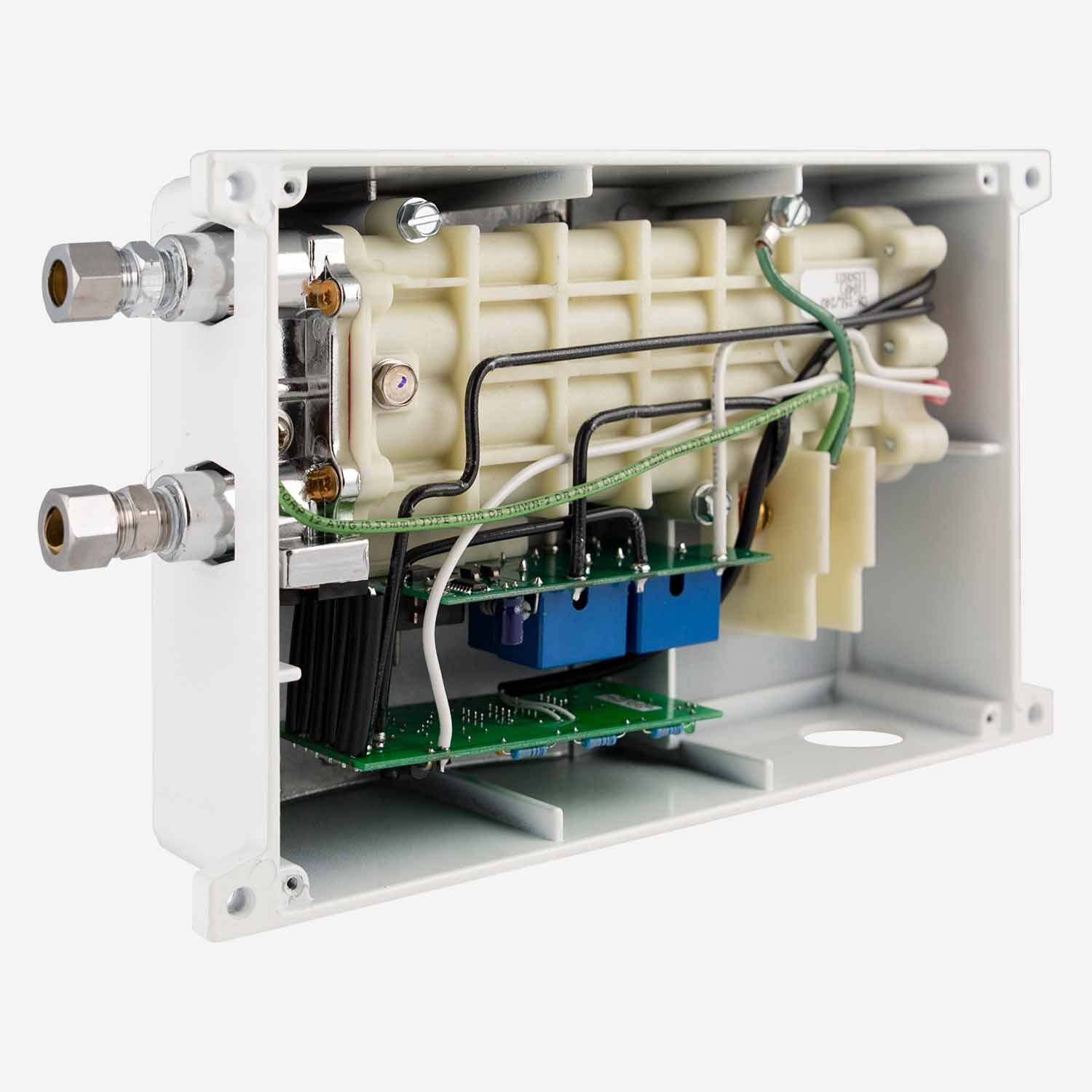

Chronomite CM Series Instant-Flow® C-Micro models are manufactured to provide reliable electric point-of-use hot water. The heater activates at an ultra low flow rate of 0.75 Liters (0.20 Gallon) per minute.Housing is fabricated from rugged cast aluminumElement assembly is fabricated from Celcon plastic.Heating coils are nichromeFaucet flow controls are supplied with each unit. 3/8” compression fittings are supplied (standard)Minimum Operating/Activation Flow Rate: 0.75 liter (0.20 Gallons) per MinuteWattage: 1.44 to 5.54 Kilowatt Range (depending on model)
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Applies to Instant-Flow® C-Micro Water Heater with 0.20 GPM Activation Flow Rate - Models CM-12L/120, CM-12L/208, CM-12L/240, CM-12L/277, CM-15L/120, CM-15L/208, CM-15L/240, CM-15L/277, CM-20L/120, CM-20L/208, et al (Documentation in English) | 0 | 1 MB | ||
| | Applies to Instant-Flow® C-Micro Water Heater with 0.75 LPM Activation Flow Rate - Models CM-12L/120, CM-12L/208, CM-12L/240, CM-12L/277, CM-15L/120, CM-15L/208, CM-15L/240, CM-15L/277, CM-20L/120, CM-20L/208, et al (Documentation in Spanish) | 0 | 1 MB | ||
| | Applies to Instant-Flow® C-Micro Water Heater with 0.20 GPM Activation Flow Rate - Models CM-12L/120, CM-12L/208, CM-12L/240, CM-12L/277, CM-15L/120, CM-15L/208, CM-15L/240, CM-15L/277, CM-20L/120, CM-20L/208, et al (Documentation in English) | 0 | 1 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 21 MB |
Specifications
| Brand | Chronomite, Instant-Flow |
| Mount | On-Floor, Wall Mount, Front Mount, Surface Mount |
| Material | Aluminum Housing |
| Compliance | ADA Building Code, UL, Cal Green Low Flow, IAPMO, UPC, U.S. Federal Public Lead Free Law 111-380 |
| Additional Benefits | Contains Recycled Material, Recyclable, Water Saving |
Models
- Uses a digital microprocessor for temperature control Ultra quick response times for temperature variations - 120 times per second. Microprocessor use is the most energy efficient means of heating water
- Vandal resistant rugged cast aluminum housing (Standard)
- Space saving compact size:159 height x 244 width x 70 mm depth (6.25 x 9.625 x 2.75 inches)
- Made in the U.S.A.
- Patent pending
Details
CM Standard Cabinet
6-1/4 (H) x 10-1/8 x 2-3/4"
159 (H) x 257 x 70 mm
Rugged cast aluminum
CM-N4X with NEMA Cabinet
7-7/8 (H) x 11-3/4 x 4-3/4"
200 (H) x 297 x 121 mm
Type 304 Stainless Steel
